CliniMix® Lead Safe™ Inwall Thermostatic Progressive Shower Mixer with GalvinCare® Handle H&C

Product Code: 100.50.75.02


$2,297 incl GST

New state of the art Galvin Specialised CliniMix® Lead Safe™ Inwall Thermostatic Progressive Shower Mixer with GalvinCare® Handle for shower applications. Specifically designed for mental health and health care facilities featuring an easy to operate on/off temperature control and option to be set to a thermostatically controlled temperature of 48°C maximum. Suitable for high and low pressure systems, reliable CliniMix® Lead Safe Thermostatic Progressive Shower Mixer is water conversing and cost-effective.

Features
  • Australia's first Lead Safe™ progressive mixer range is AS/NZS 4020 tested and certified to AS 4032.4
  • Manufactured using Lead Safe™ DZR Brass with less than 0.25% lead content*
  • Has a unique thermal disinfection bypass feature  (kit sold separately)
  • Reduces risk of Legionella growth by mixing water close to point of discharge and minimising stagnant warm water
  • Can be set to a thermostatically controlled water temperature of 48°C
  • Water flow always start from cold for safe usage
  • Enables the water to be mixed closer to the point of discharge. This minimises warm water becoming stagnant which can provide an ideal condition for Legionella bacteria to grow.
  • All servicing and commissioning can be done without removing the device. Easy to access isolators helps to minimise the time of commissioning and maintenance.
  • Rapid shut down in the event of cold or hot water supply failure

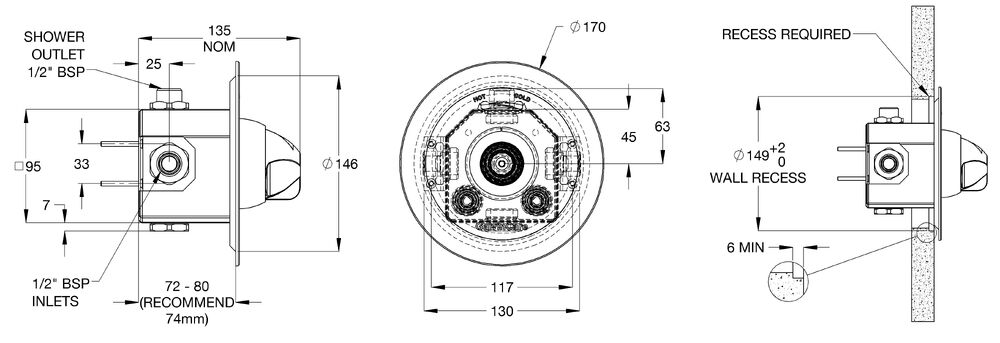

Technical Information

  • Inlet: 1/2" BSP - Male
  • Outlet: 1/2" BSP - Male
  • Headwork: Thermostatic Mixing Valve (TMV)
  • Working Pressure Range (kPa): 20 Min - 500 Max
  • Supply Temperature Range (°C): 5 Min - 85 Max
  • Minimum Temp. Differential (Between Supply and Outlet Temperature) (°C): 10
  • Adjustable Temperature Range (°C): 35 Min - 48 Max
  • Permitted Supply Pressure Variation: 10:1
  • Factory Set Thermostatic Temperature (°C): 41
  • Maximum Flow Rate for Stable Outlet Temperature (LPM): 6
  • Maximum Flow Rate (LPM): 18@300kPa
  • Construction: Lead Safe™ DZR Brass*
  • Finish: Chrome
Without hand held shower connected - water flows through fixed installed shower rose when shower valve is activated With hand held shower connected - water flow is automatically diverted from shower rose to hand shower when shower valve is activated (no water flow from shower rose occurs)






*As ‘lead free’ is not currently defined by law in Australia and New Zealand, our definition of Lead Safe is based on the requirement of s1417 of the USA’s Safe Drinking Water Act (SDWA) and the relevant US standards NSF61 / NSF372.  The SDWA defines ‘lead free’ as “not more than a weighted average of 0.25% lead when used with respect to the wetted surface of pipes, pipe fittings, plumbing fittings and fixtures”.
