Features

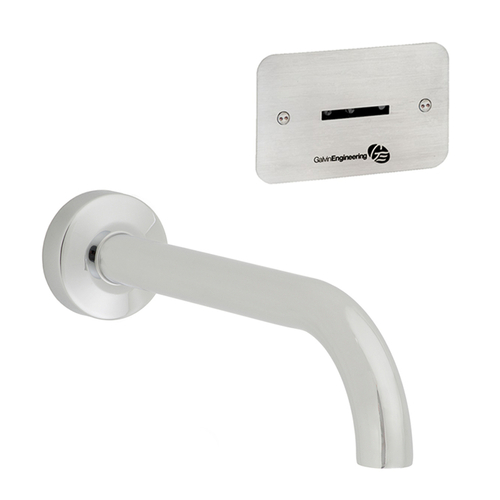

The AS/NZS 3718, WaterMark and WELS 4* Flowmatic® wall sensor and outlet combination is designed to be mounted flush into the wall or trough and provide a low profile finish to help minimise the build-up of dirt or bacteria. Combined with its handsfree operation and self-draining laminar flow spout it minimises the risk of infection for staff and patients. The multiple time cycle options are adjustable on-site, allowing the facility manager full flexibility to adjust as required.


FEATURES

Electronic Sensor

  • Sensor face is designed to be mounted flush into wall/trough to minimise dirt or bacteria growth (sensor eye and screws supplied)
  • Sensor circuit boards are supplied standard with a lacquer finish to limit moisture damage
  • Multiple time cycle options are adjustable on-site allowing full flexibility to suit user requirements
  • Built-in capacitors and easy fit electrical filters to help suppress external noise, and provide continuous reliable water delivery
  • Also available in a Bluetooth Connectivity option which then allows facility managers to program-specific hygiene times and other features

Spout

  • Angled spout to help minimise the storage of unused water and reduce the spread of Legionella
  • Laminar nozzle supplied standard to reduce the risk of Legionella spread
  • Bright chrome-plated finish for easy cleaning, added durability and hygiene maintenance

Solenoid

  • 24-volt low power usage solenoid to reduce power usage and costs
  • Slow close to minimise the impact of water hammer within the plumbing system

The kit includes:

  • Stainless steel face place with infrared sensors
  • 24V transformer, for low power usage
  • 24V brass solenoid 15mm BSP – Slow Close
  • Inline brass strainer
  • Electrical inline filters (2)
  • Chrome-plated fixed outlet 225mm or 275mm (or made to required length) with laminar flow
