Specification Data Sheet

Bring iconic style to bathroom spaces with this officially licensed Barbie™ hinged mobile support rail set. Designed to provide reliable support and flexibility, it features a fold-away design and can be easily installed or retrofitted to compatible mounting plates.

Features

  • Official Barbie™ licensed product

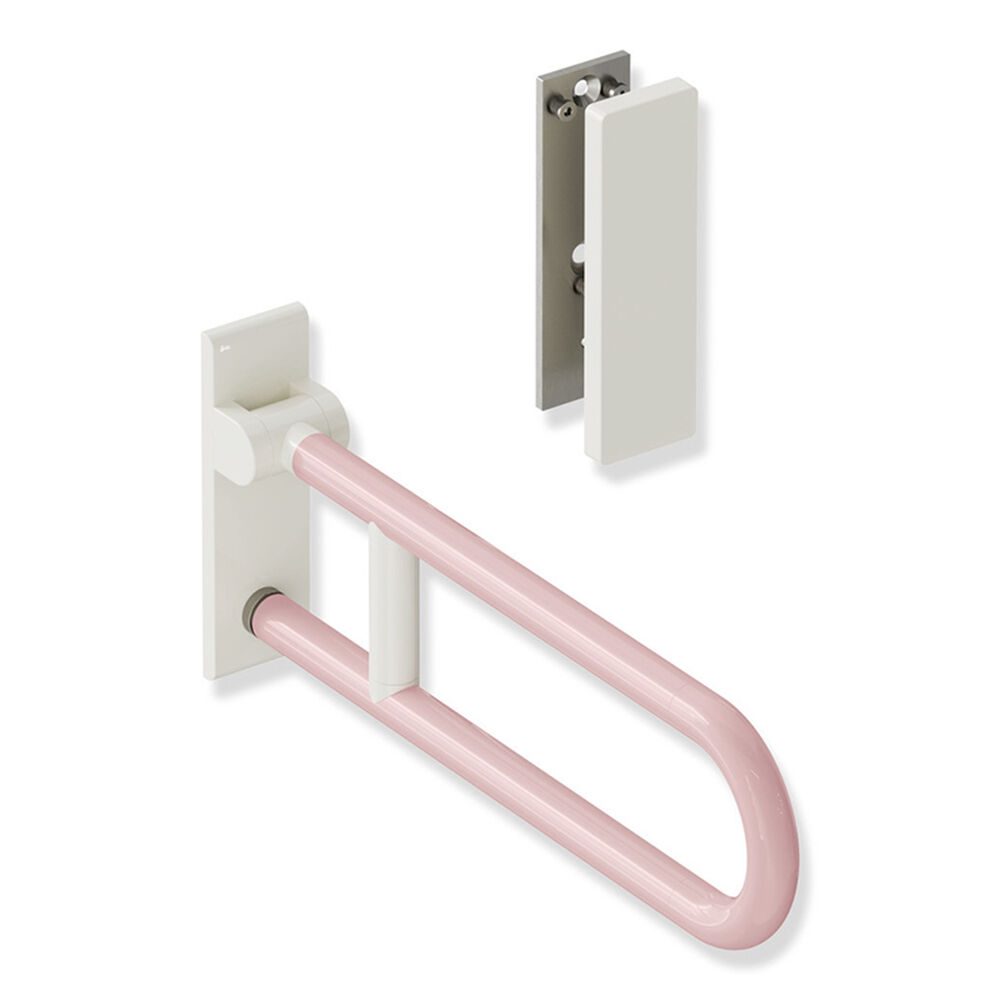

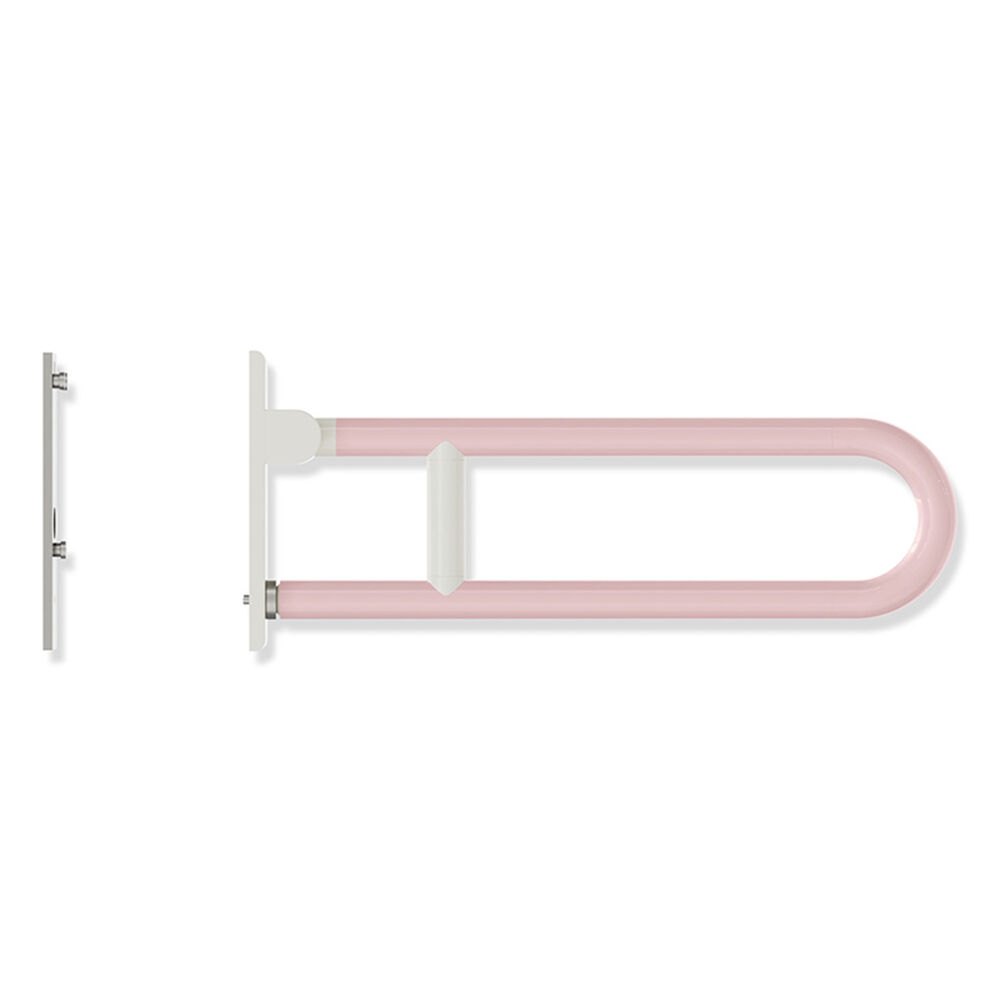

  • Mobile hinged support rail with mounting plate and cover
  • Designed to provide support and stability in bathroom environments
  • Made from high-gloss polyamide with a continuous corrosion-resistant steel core
  • Folds up and down with controlled, braked movement
  • Suitable for mobile use and flexible retrofitting applications
  • Quick, tool-free installation onto compatible pre-installed mounting plates
  • Secured with a fixing screw to prevent unintentional removal
  • Tested to 150 kg when used with HEWI fixing material
  • Recommended maximum user weight: 150 kg

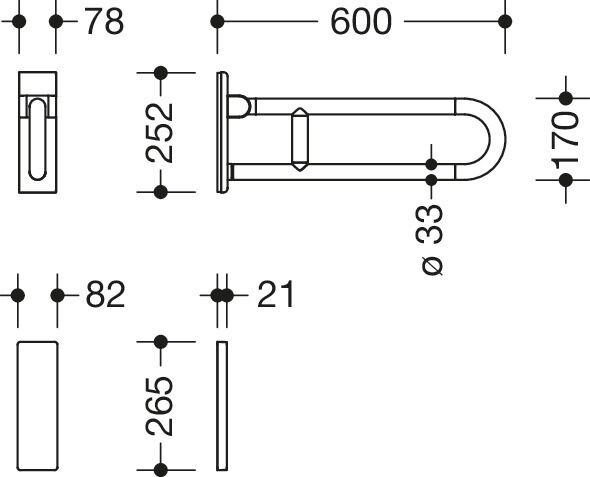

Technical Information

  • Projection: 600mm
  • Material: High-gloss polyamide with steel core
  • Installation: Wall mounted

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
