Specification Data Sheet


  • Complies with AS/NZS 4994:1998 Discharge of commercial and industrial waste water to sewer
  • Complies with AS 3996 to Class C and EN1253 Class M125

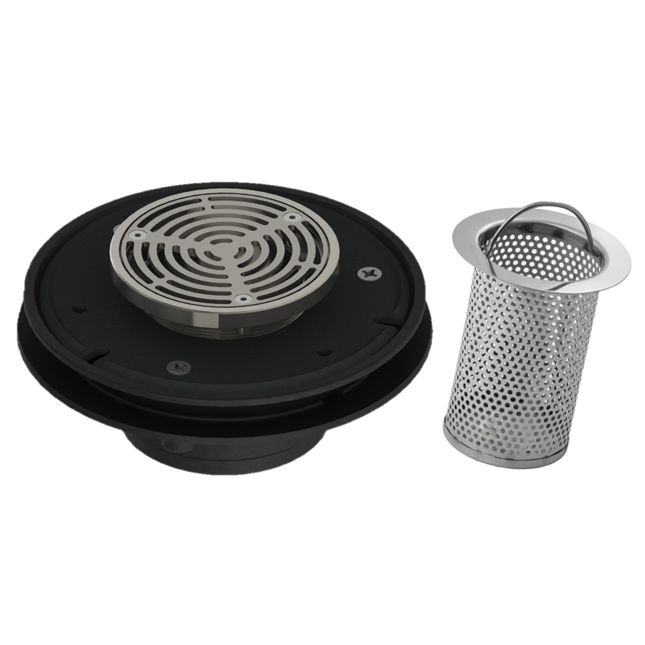

  • Stainless steel round grate
  • Ideal for commercial kitchens, food preparation areas, shopping centres and health care facilities
  • Ductile Iron body with unique built in puddle flange

Flow Rate Guide (litre/second)

  Pressure Head mm of Water
Grate Size 10mm 20mm 30mm 40mm 50mm
150 0.86 2 3.26 3.86 4.35


Spare Parts

  • 303636 Stainless Steel Strainer Basket 100 Nom

Superseding Products

  • DB4S06RX Bucket Floor Trap Combo - CI 100PVC Std Body & Stainless Steel Round Grate 150 & Stainless Steel Strainer

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.


Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
