Features

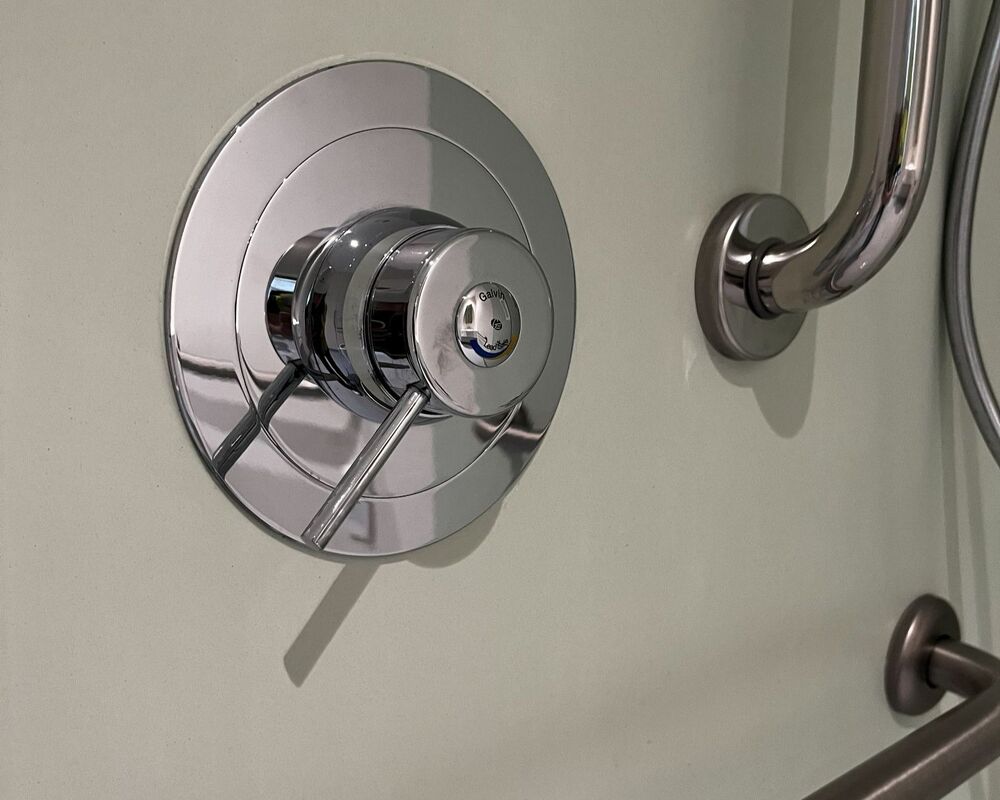

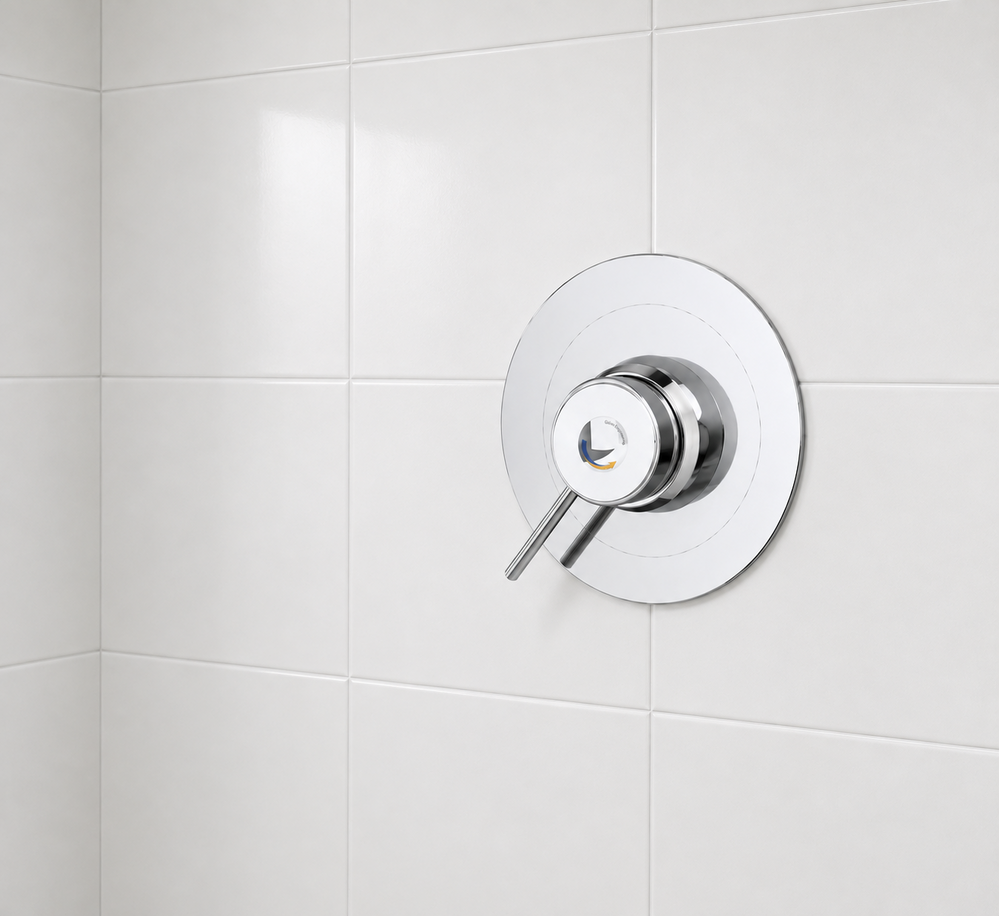

Our new state of the art Australian Made Galvin Specialised CliniMix® Lead Safe™ Inwall Thermostatic Progressive Shower Mixer for Healthcare shower applications. Specifically designed for health care facilities featuring an easy to operate on/off temperature control and option to be set to a thermostatically controlled temperature of 48ºC maximum. Suitable for high and low pressure systems, reliable CliniMix® Lead Safe™ Thermostatic Progressive Shower Mixer is water conserving and cost-effective.

Features

  • Australia's first Lead Safe™ progressive mixer range is AS/NZS 4020 tested and certified to AS 4032.4
  • Manufactured using Lead Safe™ DZR Brass with less than 0.25% lead content*
  • Has a unique thermal disinfection bypass feature
  • Reduces risk of Legionella growth by mixing water close to point of discharge and minimising stagnant warm water
  • Minimises dirt build up and is fast and easy to clean due to its smooth internal and external design
  • Can be set to a thermostatically controlled water temperature of 48°C
  • Water flow always starts from cold for safe usage.
  • All servicing and commissioning can be done without removing the device. Easy to access isolators helps to minimise the time of commissioning and maintenance
  • Rapid shut down in the event of cold or hot water supply failure
  • Also available as Chrome Plated Brass option WM-TMVPMS
  • Disinfection Kit Plug available WM-PMSKIT

Technical Information

  • Inlet: 1/2" BSP - Male
  • Outlet: 1/2" BSP - Male
  • Headwork: Thermostatic Mixing Valve (TMV)
  • Working Pressure Range (kPa): 20 Min - 500 Max
  • Supply Temperature Range (°C): 5 Min - 85 Max
  • Minimum Temp. Differential (Between Supply and Outlet Temperature) (°C): 10
  • Adjustable Temperature Range (°C): 35 Min - 48 Max
  • Permitted Supply Pressure Variation: 10:1
  • Factory Set Thermostatic Temperature (°C): 41
  • Minimum Flow Rate for Stable Outlet Temp. (LPM): 6
  • Maximum Flow Rate (LPM): 18 @ 300kPa
  • Construction:  Lead Safe™ DZR Brass*
  • Finish:  Chrome

Click here for more details about Lead Safe™ >

Video
