Specification Data Sheet

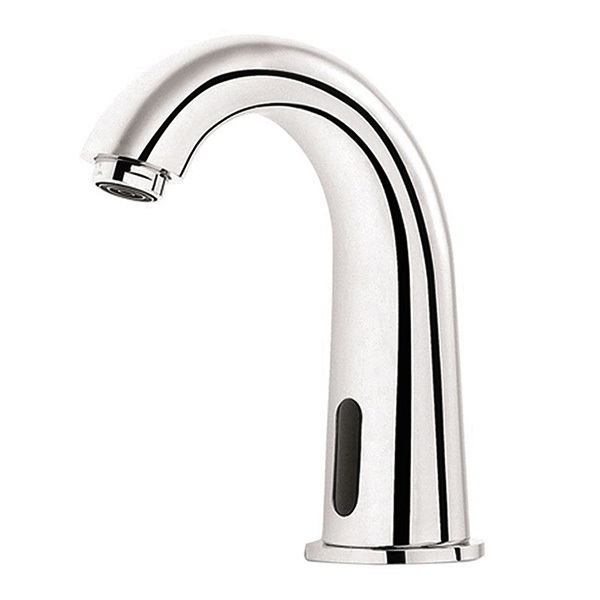

The Flowmatic® Lead Free Electronic Tapware is ideal for high-end or private restrooms that call for the convenience of handsfree activation with the option of user-controlled settings. Water flows only when needed providing energy savings and convenience.

Features

  • Commercial grade quality and fully backed by our industrial warranty
  • Modular one piece of construction with all serviceable components above the basin
  • Double infrared sensor with automatic setting feature and microprocessor
  • Bi-stable magnetic solenoid valve (for increased energy savings)
  • Water supply connection with flexible high-pressure hose and strainer
  • Iqua click feature enables temporary - off (for cleaning purposes) or continuous water flow (for filling the basin)
  • Hygienic rinse water flow time adjustable to comply with health standards with adjustable 12, 24 or 72 hour hygienic rinse option
  • Check valves and built-in strainers

Technical Information

  • WELS: 6 Star Rating (4.5L/min)
  • Nominal Flow Rate (LPM): 4.3
  • WaterMark: AS/NZS 3718 Lic. WMKA20371
  • Inlet: ½” BSP – Flexi-hose
  • Outlet: Aerator
  • Headwork: Solenoid
  • Power Supply (VDC): 6
  • Working Pressure Range (kPa): 30 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 80 Max
  • Power Supply: 3 x 1.5V Alkaline Batteries

Alternative Product Options

  • 151.11.12.00 Flowmatic® Lead Safe™ Flamingo Hob Basin Tap without Temp Mixing - Mains Power

Superseding Products


  • TZ-FL20SB Conti Electronic Flamingo Infrared Hob Basin Tap without Temperature Mixer - Battery
  •


Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
