Specification Data Sheet

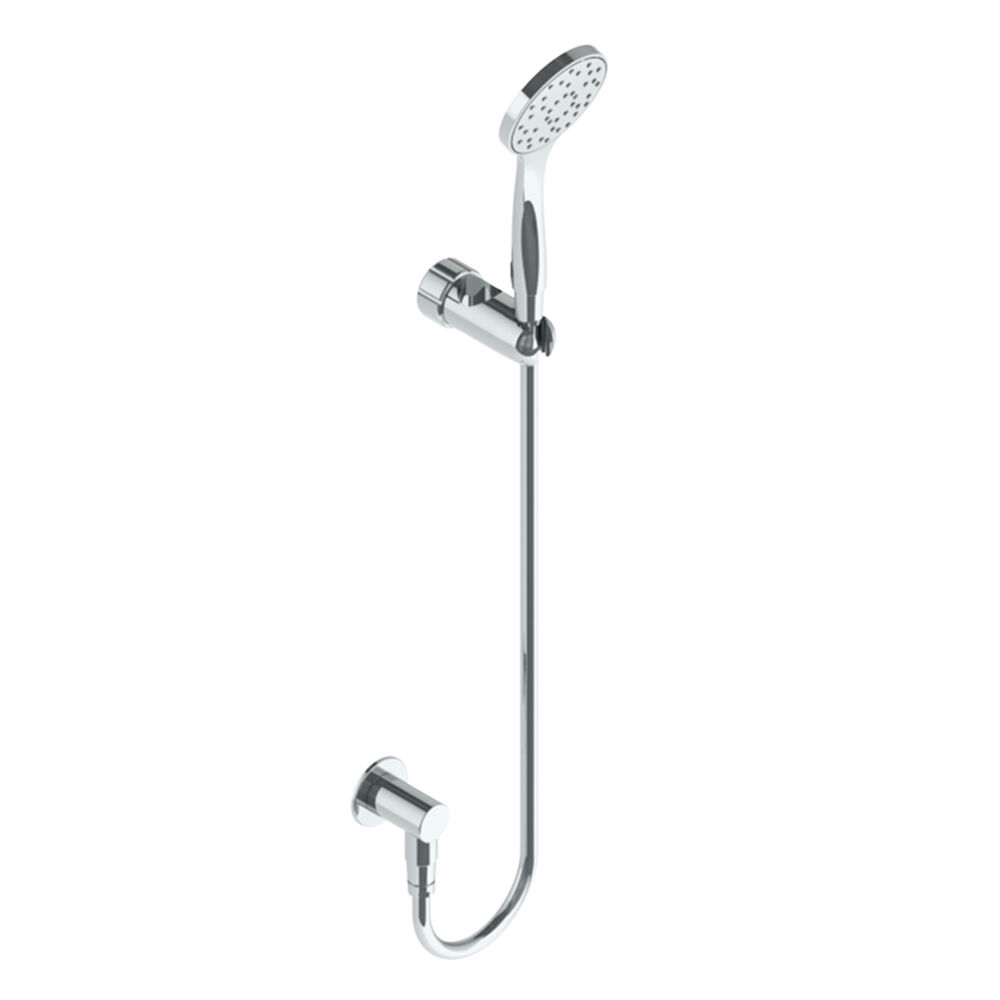

The GalvinAssist® Hand Shower Kit provides a complete shower fit-off solution designed for accessible and healthcare environments. Combining durable, easy-to-use components, the kit helps support safe, comfortable and reliable showering for both users and carers.

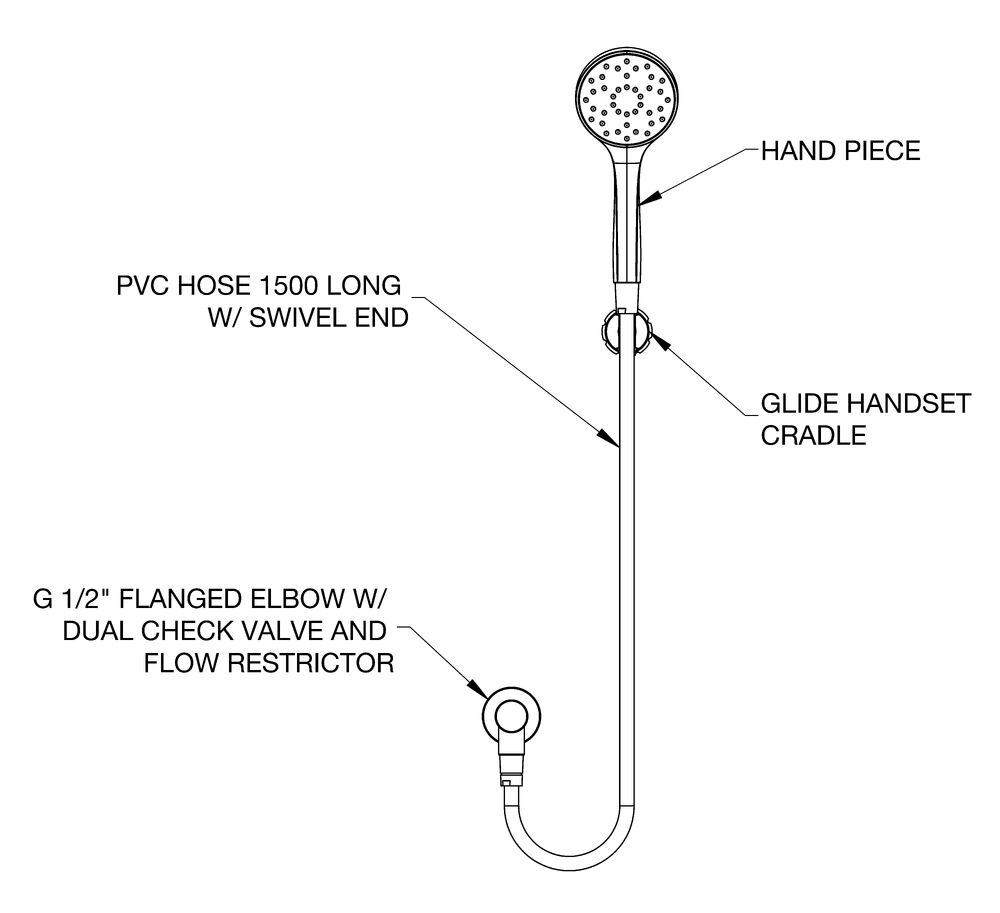

Kit Includes

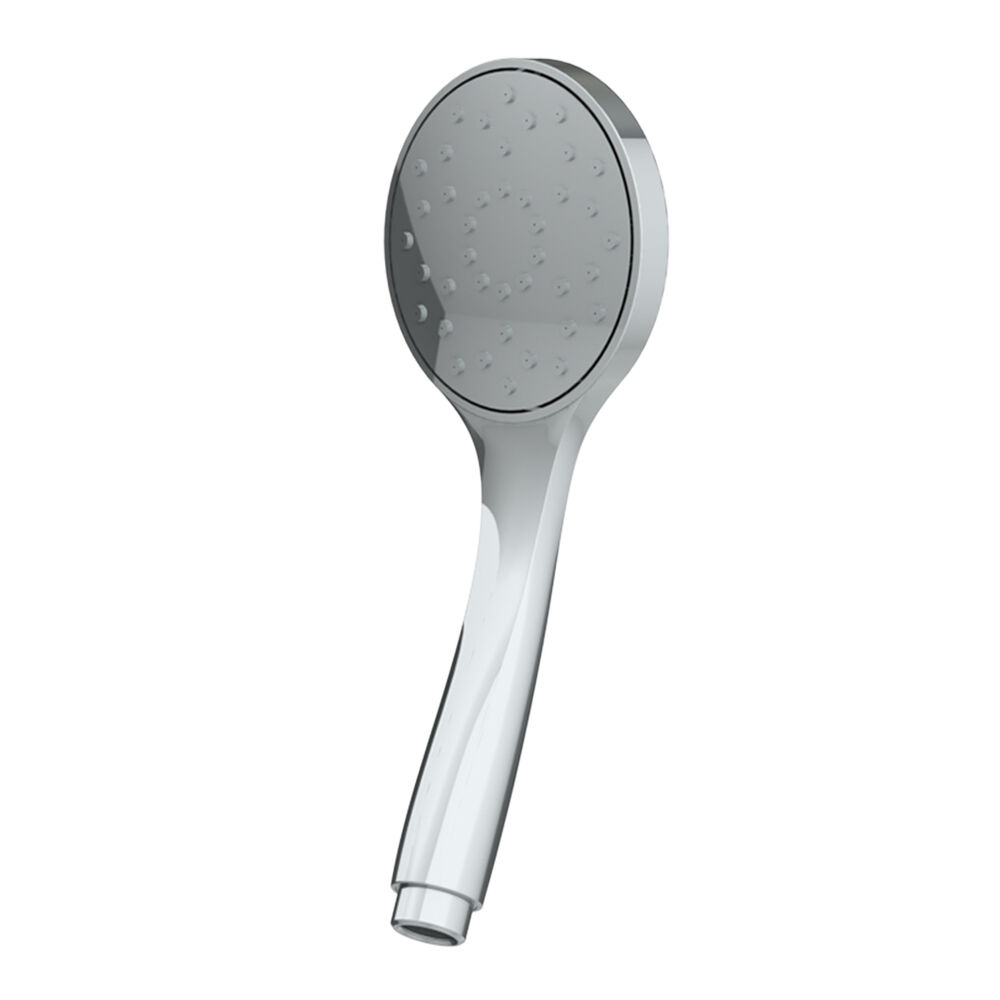

  • Shower Handpiece

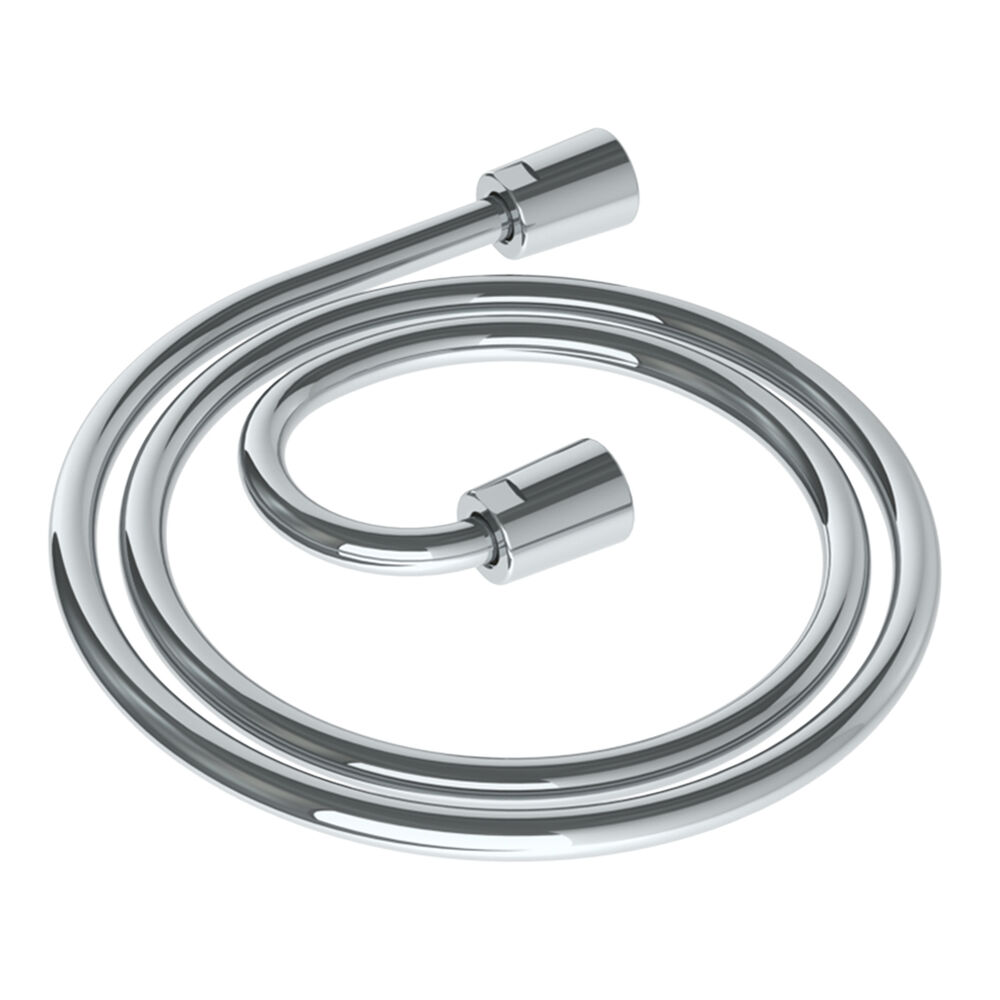

  • PVC Hose

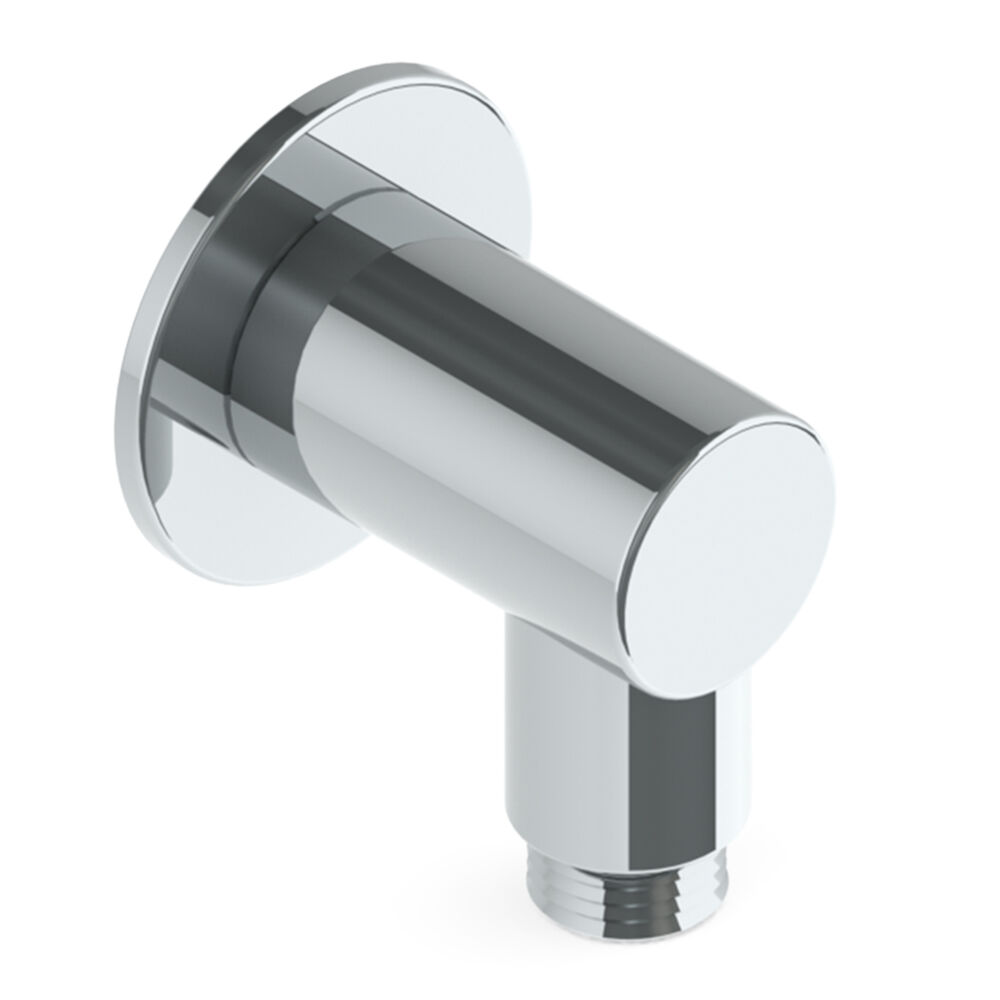

  • Wall Outlet Elbow

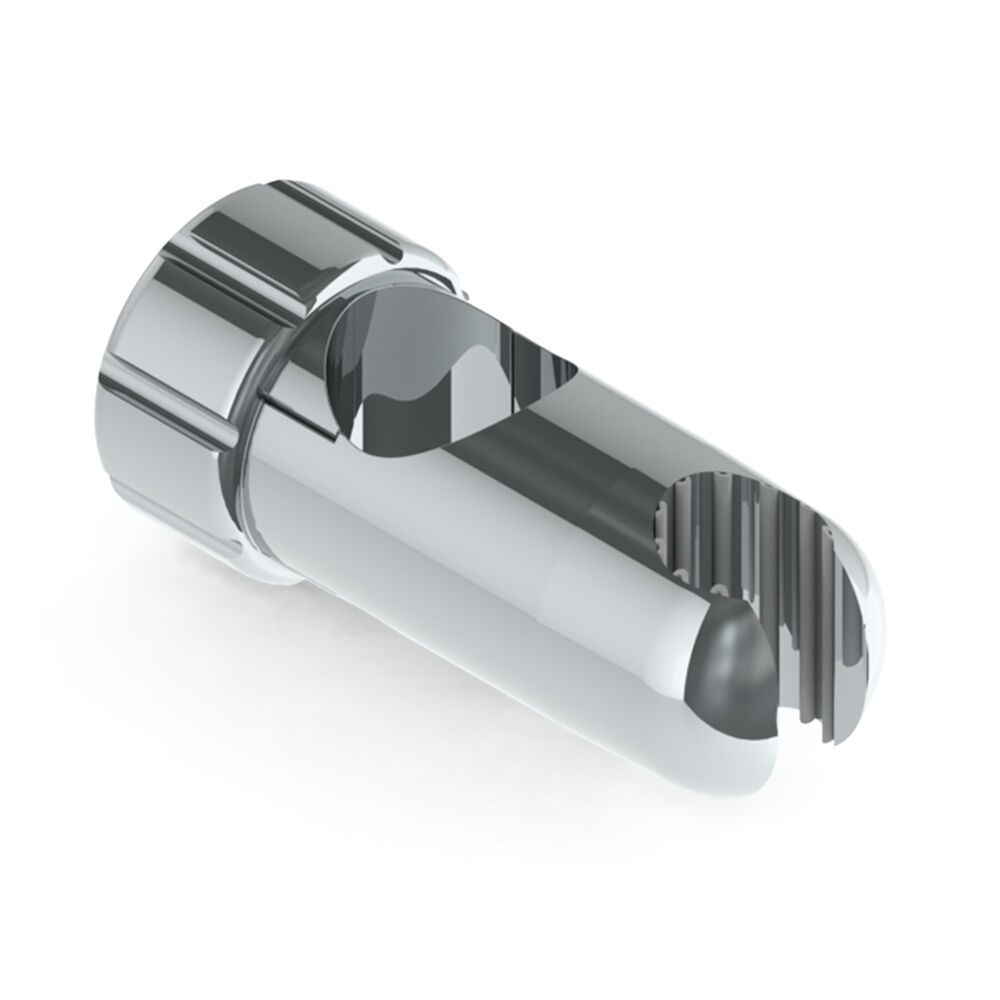

  • Handset Cradle

Features

  • Complete shower fit off kit for convenient installation and specification
  • Strong and stylish ABS hand piece
  • PVC reinforced smooth and flexible spiral hose
  • Designed for healthcare, aged care and accessible bathroom applications
  • Supports safe and comfortable showering for users and carers
  • Provides a durable and reliable solution for high-use environments
  • ABS slide cradle fastened and tensioned to the grab rail for handset support and movement
  • ABS slide cradle suits 32mm grab rail

Technical Information

  • WELS: 5 Star Rating (6.0L/min)
  • Nominal Flow Rate (LPM): 5.62
  • WaterMark: AS/NZS Lic. WMK26191
  • Inlet: ½” BSP – Female
  • Outlet: Handheld Shower
  • Working Pressure Range (kPa): 150 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 55 Max
  • Finsih: Chrome

Spare Parts

  • 42498 GalvinAssist® ABS Slide Handpiece Cradle for 32mm Grab Rail
  • 42484CP GalvinAssist® CP ABS Shower Handpiece
  • 42471 GalvinAssist® CP Flanged Wall Outlet Elbow with Dual Check Valve 15mm
  • 42333CP GalvinAssist® PVC Hose CP 15x1500 Long with Swivel End

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
