Specification Data Sheet

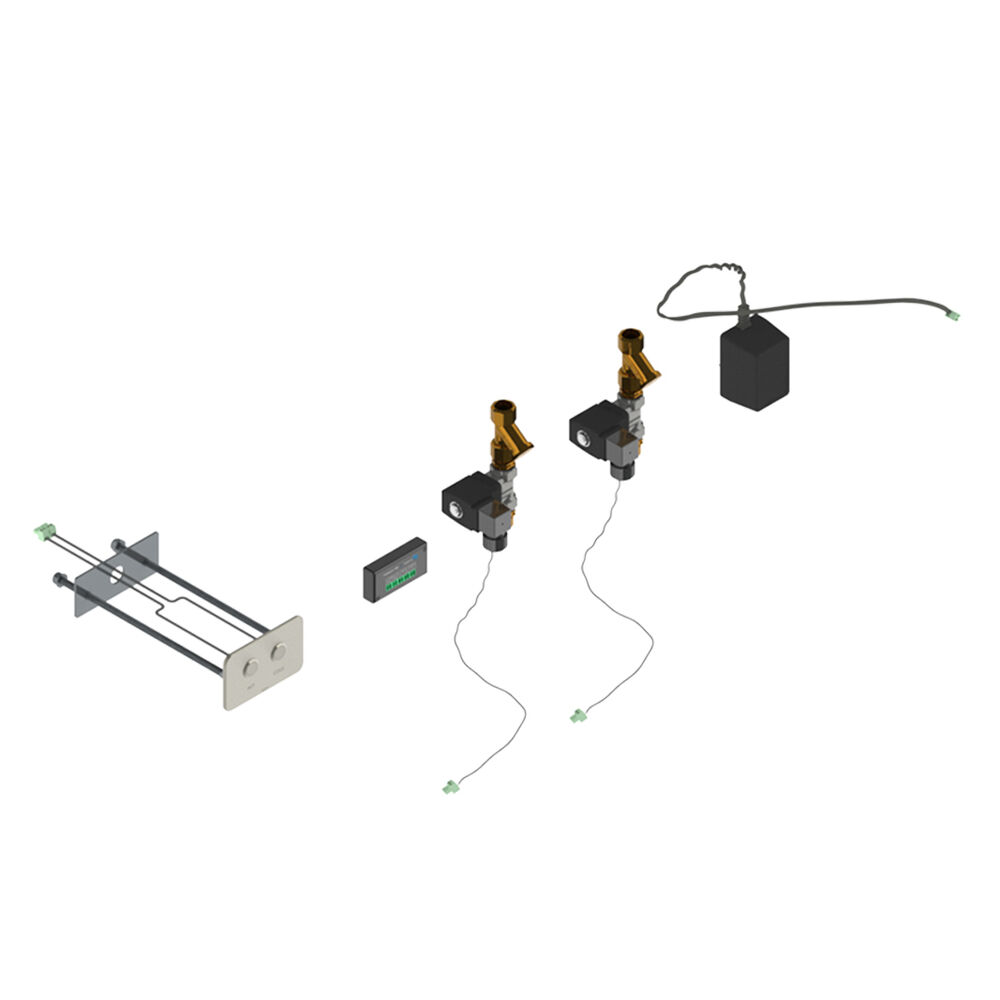

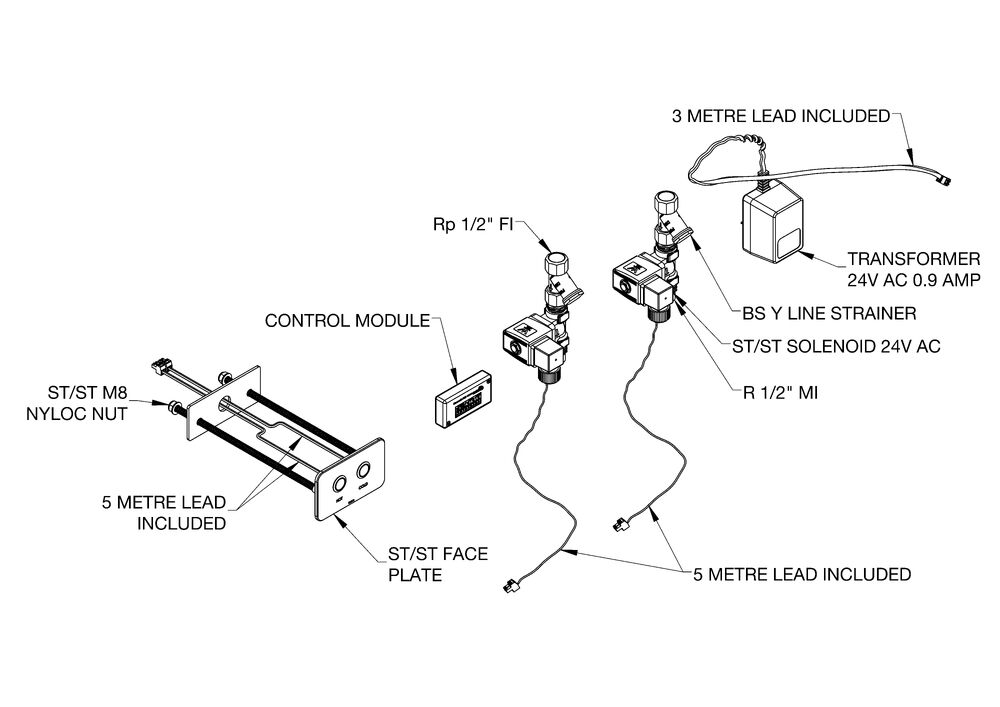

The lead free GalvinCare® Electronic Dual Temperature Basin Assembly with Controller offers a complete ligature- and vandal resistant solution. This unique electronic valve system is purpose-built for high-risk and secure environments and is designed for rear (duct) installation.

Features

  • Ligature resistant design
  • Vandal resistant design
  • Designed for rear fixing via service duct with no front penetrations
  • Dual temperature functionality for hot and cold water supply
  • Pressing the push button activates the basin. Once activated the water will flow for the 15 second factory preset time or until deactivated by pressing the button again
  • Cabling is supplied for the cell call buttons, solenoids and transformer
  • Manufactured using Lead Free DZR Brass with less than 0.25% lead content
  • Australian made – local support and spare parts available for reduced downtime

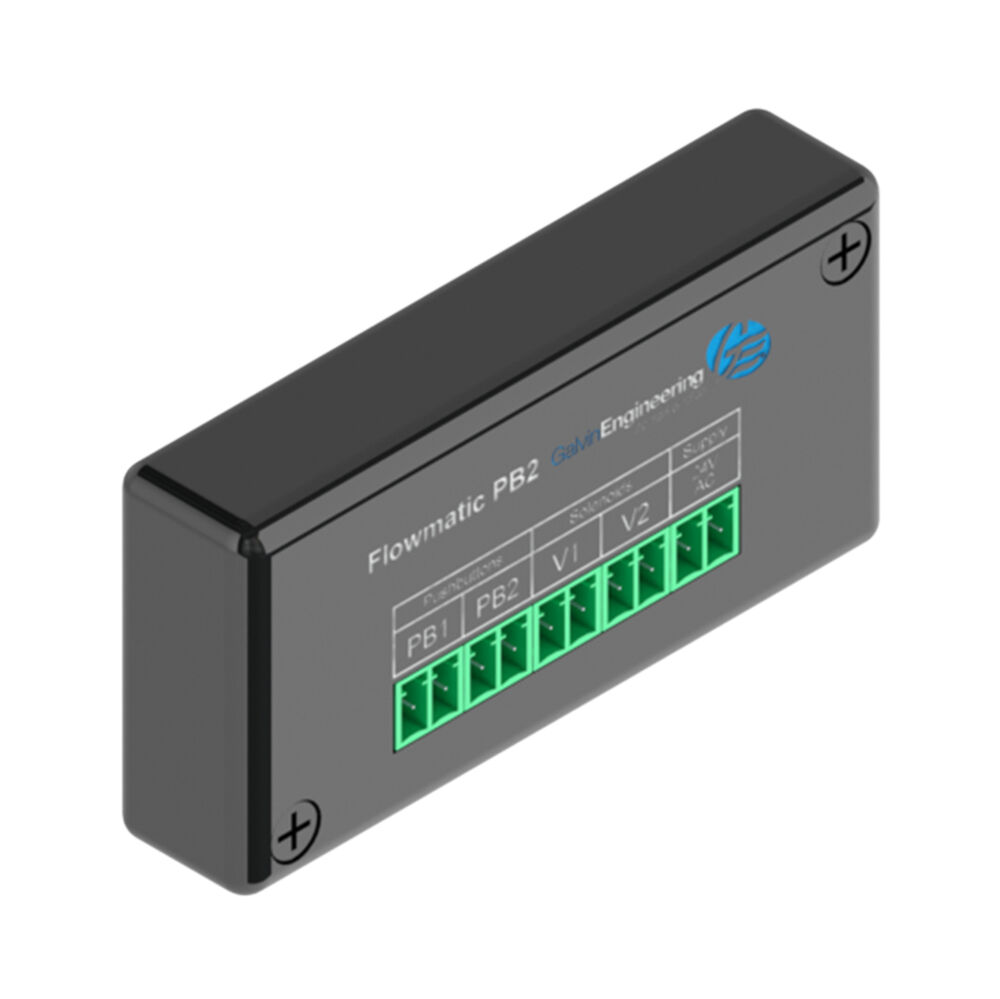

Controller

  • 24V AC electronic control system
  • Pre-programmed and ready for use
  • Supports input from up to 2 buttons and up to 2 solenoids (dual temperature units operate with two solenoids)
  • Operating parameters can be adjusted via compatible Android device with Bluetooth

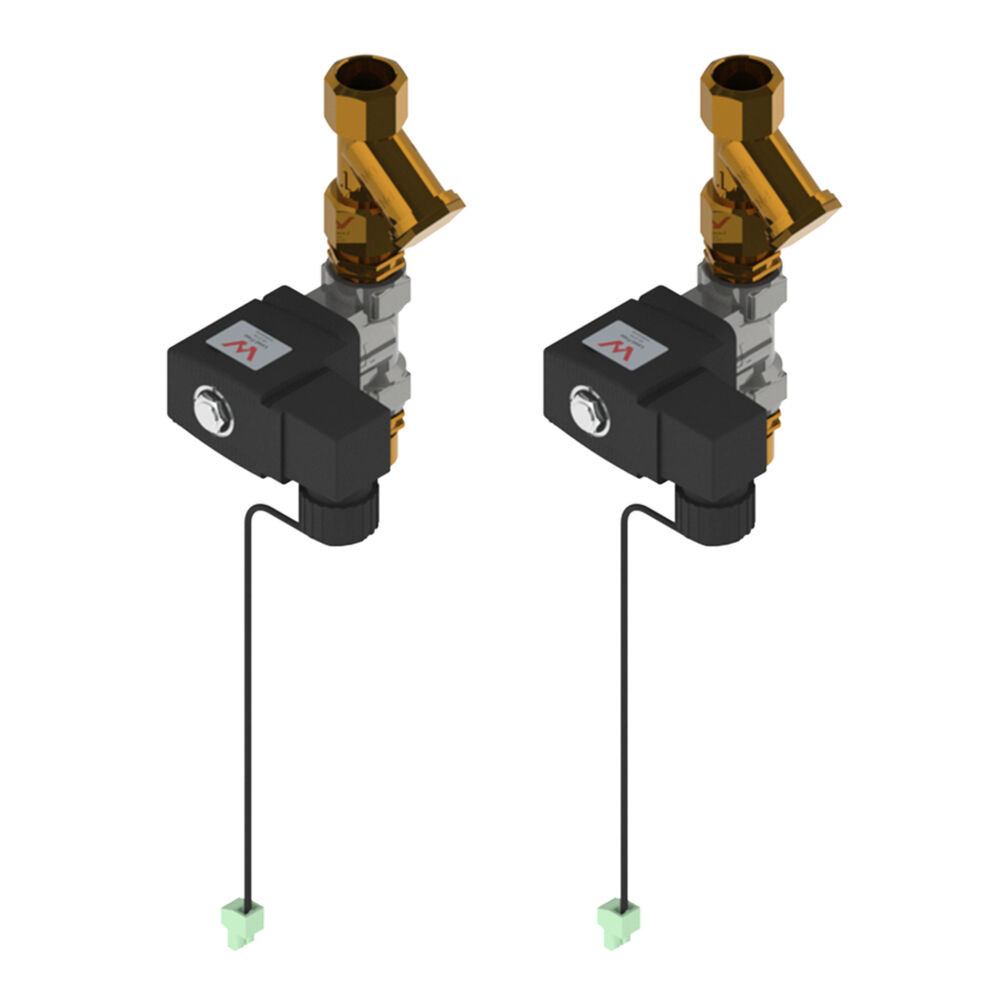

Solenoid Valves

  • 24V AC water hammer resistant solenoids
  • Designed for reliable operation in high-use environments

Face Plate

  • 4mm thick stainless steel
  • Rear fixed design with concealed fixings for enhanced vandal and ligature resistance
  • No front penetrations for improved safety in high-risk environments

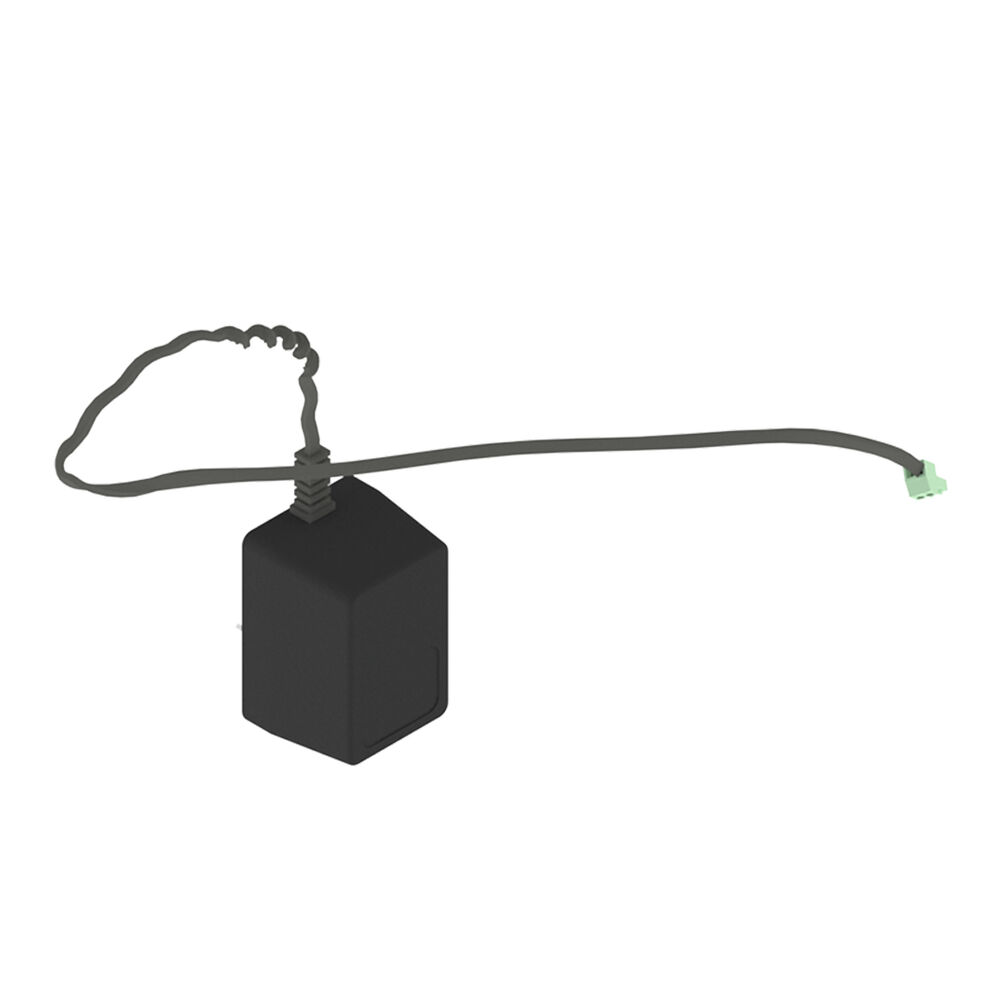

Power Supply

  • Transformer input: 230–240V AC, 50Hz
  • Output: 24V AC, 0.9A, 22VA

Cabling

  • Power cable: 3m
  • Solenoid and sensor cables: up to 5m

Other Technical Information

  • Inlet: G ½” - Female
  • Outlet: G ½” - Male
  • Headwork: Solenoid
  • Activation: Push Button (IP68 Rated)
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 90 Max
  • Finish: Brushed Stainless Steel

Spare Parts

  • 52455 GalvinCare® Ligature Resistant Electronic Ducted Dual Temp Basin Face Plate 24V AC
  • 52056LF Flowmatic® Lead Safe™ Mains Solenoid Kit 24v AC 15
  • 52014 Flowmatic® Transformer 24v AC 0.9 AMP for Electronic Tapware

Alternative Product Options

  • 122.81.13.00 GalvinCare® Lead Safe™ Ligature Resistant Electronic Ducted Single Temp Basin Assembly with Controller

Superseding Products

  • FLOWTBAS2DT GalvinCare® Ligature Resistant Electronic Ducted Dual Temp Basin Assembly with Controller

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.

Galvin Engineering offers a range of ligature resistant, anti-ligature, vandal resistant, and anti-vandal products designed to reduce the risk of self-harm, suicide, or vandalism, but we cannot offer any guarantee that these events will not take place. Therefore, it is important to understand that installation of these products will not eliminate all risks.

When we use the terms ligature resistant and/or anti-ligature about our products, it means that we have designed and tested these products to reduce the risk of that product being used as a ligature attachment point. They will not protect or prevent injury when the risks were unknown to us at the time of the design of the products. They are not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of self-harm or suicide.

When we use the terms vandal resistant and/or anti-vandal about our products, it means that we have designed and tested these products to reduce the risk of that product being vandalised. They will not protect or prevent damage when the risks were unknown to us at the time of the design of the products.

Galvin Engineering recommends that designers, installers, facility managers, and anyone intending to rely on or use any products displayed in our literature or on our website, satisfy themselves about the suitability of the products for their intended use in the building design, and ensure they are being installed, used, and maintained in accordance with our instructions. Facility managers, clinicians, and carers need to ensure that reasonable steps are taken to reduce the accessibility of unnecessary ligatures to at-risk patients, confirm that adequate risk mitigation controls are in place, and make sure that applicable health, safety and patient care standards are being met.

Galvin Engineering makes no express or implied warranties regarding the ability of the product to prevent death or injury, to resist all ligature attachment, or to prevent vandalism. No responsibility is assumed by Galvin Engineering for any incidental or consequential damages resulting from the use of any products sold by Galvin Engineering. To the fullest extent permitted by law, Galvin Engineering excludes all liability for damage or injury to any person, damage to any property, and any indirect consequential claims, loss or damage.
