Specification Data Sheet

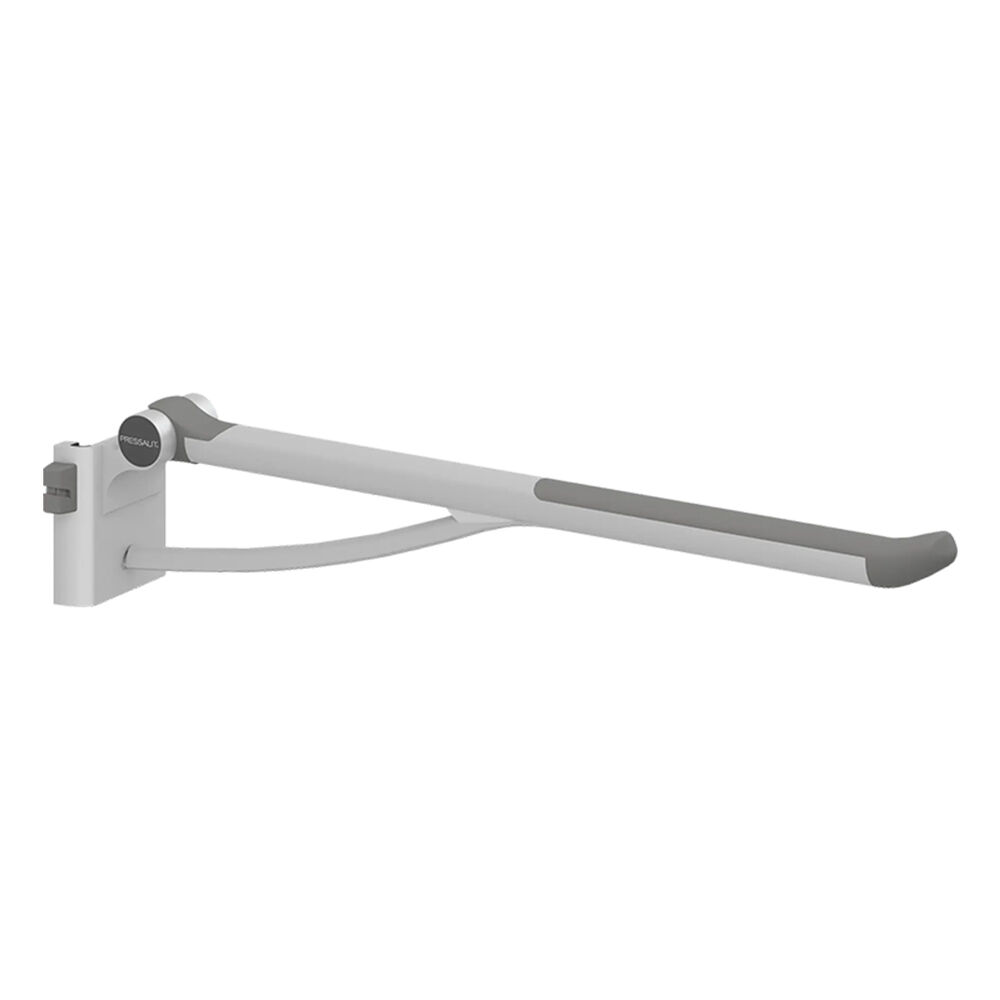

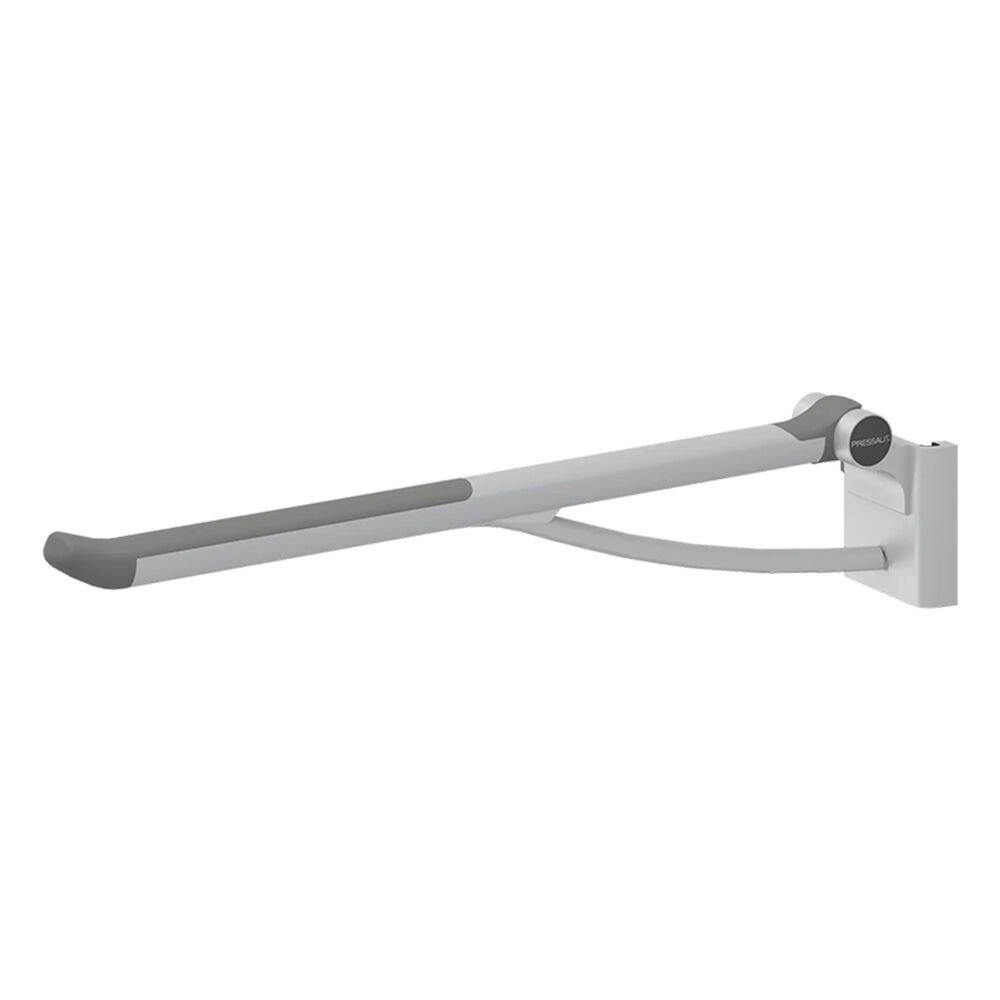

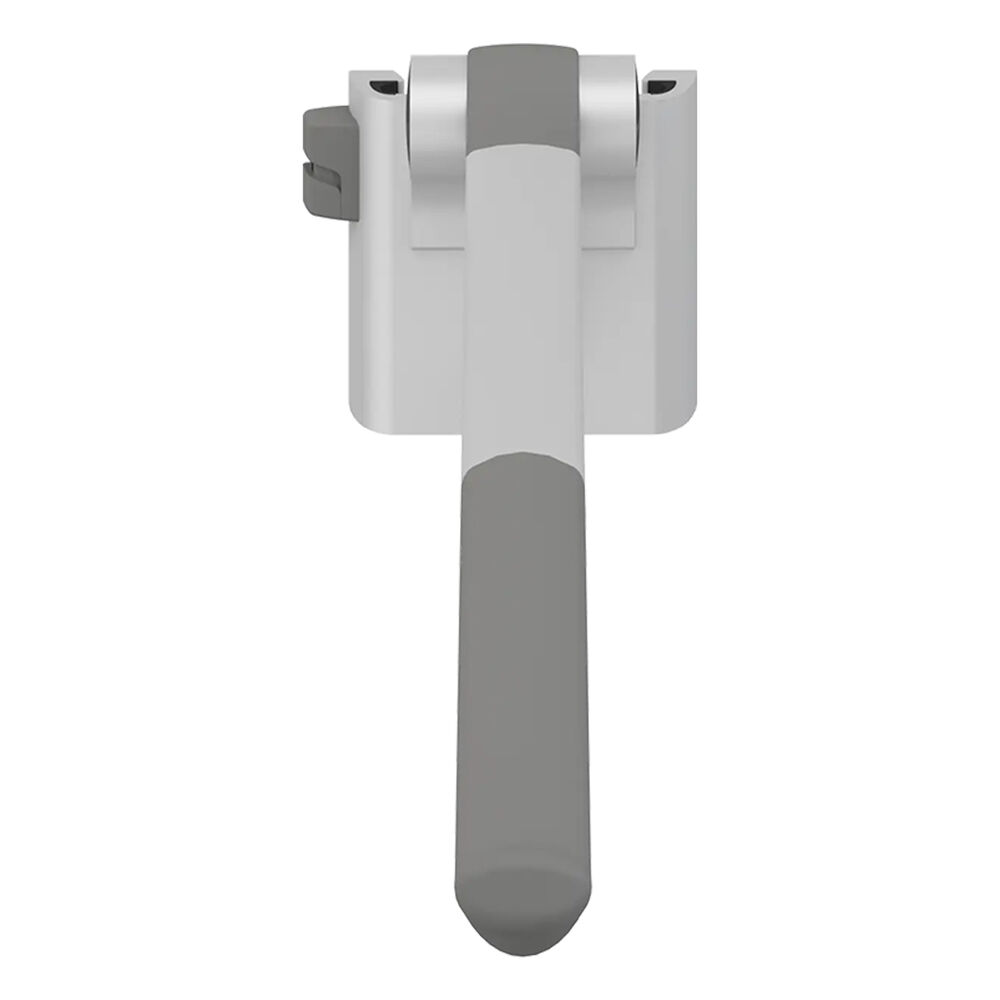

The Pressalit Plus Support Arm provides comfortable, reliable support when sitting down or standing up from a toilet. Its ergonomic design and integrated counter-balance allow controlled movement, while the foldable design saves space when not in use.

Features

  • Integrated counter-balance for controlled movement
  • Ergonomic oval shape for comfortable support
  • Soft, non-slip gripping surface
  • Folds against the wall when not in use
  • Tool-free height adjustment
  • Detachable design allows sharing between compatible locations
  • Available in left- and right-hand configurations
  • Suitable for floor-standing toilets and toilet pans projecting 700 mm

Technical Information

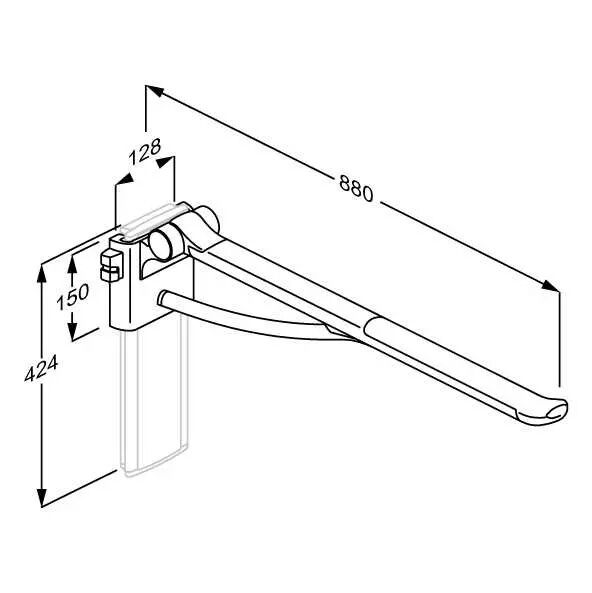

  • Projection: 880 mm
  • Operation: Left Hand
  • Maximum load capacity: 150 kg
  • Material: 10-micrometre anodised aluminium
  • Grip material: Soft, non-slip SEBS with a glass-reinforced nylon core
  • Adjustment: Tool-free height adjustment

Note: Vertical Wall Track and Mounting Kit not included. Available to add-on. See Optional Extras tab.

Optional Extras

  • R9861112 Pressalit Plus Vertical Wall Track for Support Arm, 210mm, LH - Anthracite Grey
  • V8660 Pressalit Mounting Kit for Aerated Concrete (8pcs)
  • V8610 Pressalit Mounting Kit for Brick Wall (8pcs)

Alternative Product Options

  • R371485112 Pressalit Plus Support Arm, 880mm, RH - Anthracite Grey

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin products are covered under our Manufacturer's Warranty. Galvin products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance, and General Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
