Features

Galvin Specialised AS/NZS 3718 approved CliniLever® Stainless Steel Lead Safe™ Basin Mixer with Accessible Lever is ideal for use in disabled bathrooms where access is paramount. Robust and reliable, the Mixer is water conserving and cost-effective.

Features

  • 304 stainless steel construction
  • Complies to Victorian School Building Authority (VSBA)
  • Ergonomic design
  • AS 1428.1 accessible compliant.

Technical Information

  • Inlet: 1/2"BSP - Female Flexi Tails
  • Outlet: Aerator
  • Headwork: 40mm Ceramic Cartridge
  • Working Pressure Range (kPa): 20 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 80 Max
  • Nominal Flow Rate (LPM): 5.88
  • Construction: Stainless Steel
  • Finish: Brushed Stainless Steel



Click here for more details about Lead Safe™ >

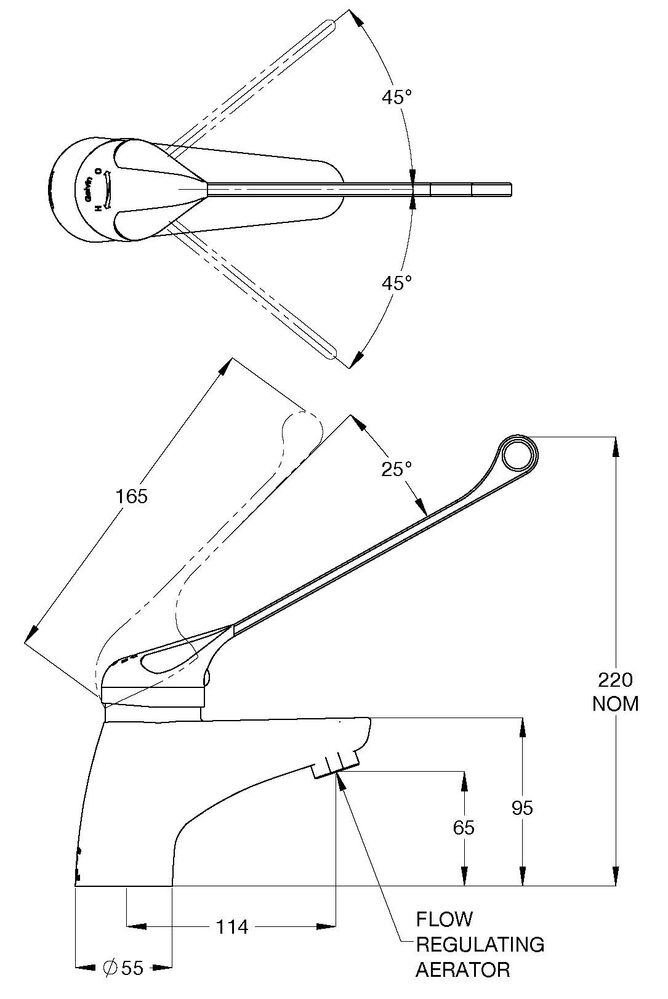

Specification Data Sheet

CliniLever® Stainless Steel Lead Safe™ Basin Mixer with Accessible Lever

Product Code: TM-BASXD

Galvin Specialised AS/NZS 3718 approved CliniLever® Stainless Steel Lead Safe™ Basin Mixer with Accessible Lever is ideal for use in disabled bathrooms where access is paramount. Robust and reliable, the Mixer is water conserving and cost-effective.

Features

  • 304 stainless steel construction
  • Complies to Victorian School Building Authority (VSBA)
  • Ergonomic design
  • AS 1428.1 accessible compliant.

Technical Information

  • Inlet: 1/2"BSP - Female Flexi Tails
  • Outlet: Aerator
  • Headwork: 40mm Ceramic Cartridge
  • Working Pressure Range (kPa): 20 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 80 Max
  • Nominal Flow Rate (LPM): 5.88
  • Construction: Stainless Steel
  • Finish: Brushed Stainless Steel



Click here for more details about Lead Safe™ >



Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and reduce the use of non-recyclable or non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS3500 and the PCA, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product

Please visit www.galvinengineering.com.au to view the full warranty, our Maintenance & Cleaning information and any other additional information.

Whilst all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remains the property of Galvin Engineering Pty Ltd.
