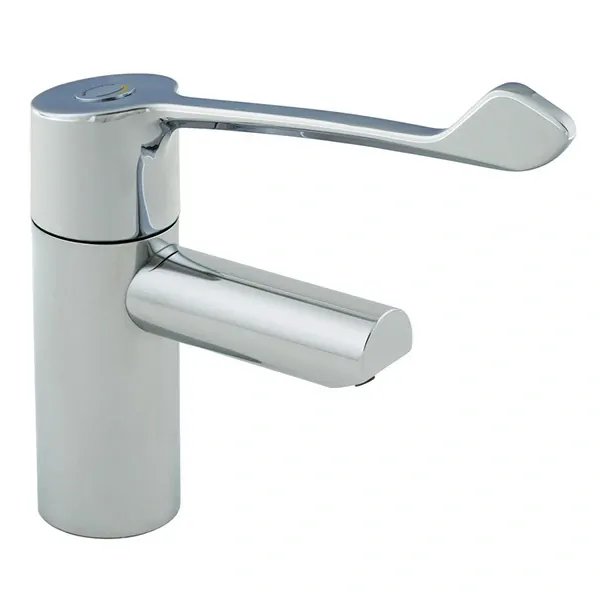

CliniMix® Lead Safe™ Hob Mtd Thermostatic Progressive Basin Mixer - Lever

Product Code: 100.00.71.00



This innovative point of use thermostatic progressive mixer provides state-of-the-art safety features to comply with the latest healthcare requirements. The single lever operates on/off temperature control for straight forward operation simplifying hand wash procedures. The long arm is operated handsfree with elbows to avoid hand contact or cross-contamination. Suitable for high and low pressure systems it can be set to deliver a thermostatically controlled water temperature up to 48ºC maximum. Robust and reliable, our CliniMix® Lead Safe™ Thermostatic Progressive Basin Mixer is water conserving and cost-effective.

Features
  • Australia's first Lead Safe™ progressive mixer range is AS/NZS 4020 tested and certified to AS 4032.4
  • Manufactured using Lead Safe™ DZR Brass with less than 0.25% lead content*
  • Unique thermal disinfection bypass feature
  • Enables the water to be mixed closer to the point of discharge. This minimises warm water becoming stagnant which can provide an ideal condition for Legionella bacteria to grow
  • Smooth internal and external components to decrease dirt build-up
  • Features a hygienic laminar flow outlet
  • The long lever sequential control handle is easy to access (handsfree) and provides precise control of temperature
  • Water flow always starts from cold for safe usage
  • Fast and easy to clean
  • All servicing and commissioning can be done without removing the device. Easy to access isolators helps to minimise the time of commissioning and maintenance
  • Designed to provide stable mixed temperature and rapid shut down in the event of cold or hot water supply failure
  • Also available as Chrome Plated Brass option WM-TMVPMB

Technical Information

  • Inlet: 1/2" BSP - Female
  • Outlet: Laminar Flow
  • Headwork: Thermostatic Mixing Valve (TMV)
  • Supply Temperature Range (°C): 5 Min - 85 Max
  • Minimum Temp. Differential (Between Supply and Outlet Temp.) (°C): 10
  • Adjustable Temperature Range (°C): 35 Min - 48 Max
  • Permitted Supply Pressure Variation: 10:1
  • Factory Set Thermostatic Temperature (°C): 41
  • Minimum Flow Rate for Stable Outlet Temp. (LPM): 6
  • Nominal Flow Rate (LPM): 8
  • Construction: Lead Safe™ DZR Brass*
  • Finish: Chrome

_______________________________________________________________________________________________________________________*As lead-free is not currently defined by law in Australia and New Zealand, our definition of Lead Safe™ is based on the requirement of s1417 of the USA's Safe Drinking Water Act (SDWA) and the relevant US standards NSF61/NSF372. The SDWA defines 'lead free' as "not more than a weighted average of 0.25% lead when used with respect to the wetted surface of pipes, pipe fittings, plumbing fittings and fixtures".
