Specification Data Sheet

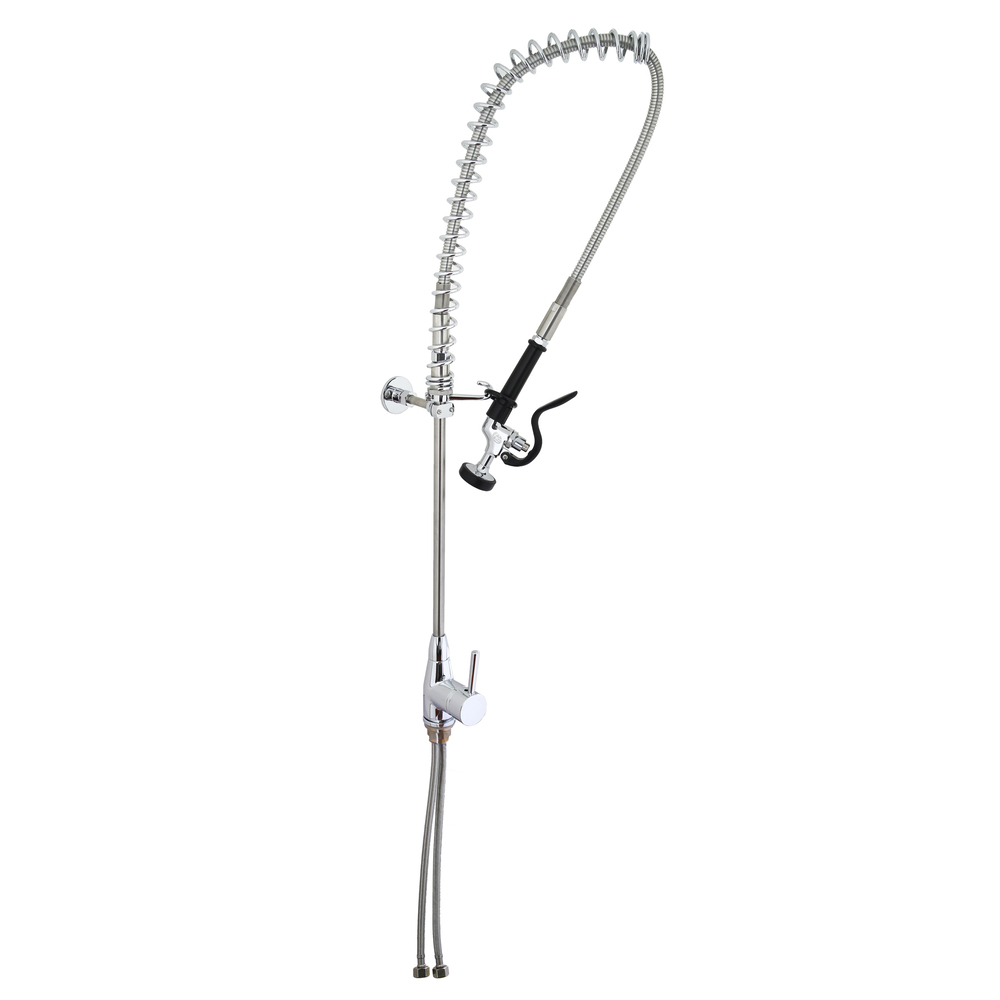

The Galvin Specialised Ezy-Wash® Single Lever Mixer Pre-Rinse Unit is designed to clear excess food debris and sauces off of dishes before placing them in your commercial dishwashers, and an ergonomic trigger handle allows easy and intuitive use. Our range of commercial-grade tapware is designed to clear excess food debris and sauces off of dishes before placing them in your commercial dishwashing machine, and an ergonomic trigger handle allows easy and intuitive use.

Features

  • Commercial grade quality and fully backed by our industrial warranty
  • Support spring in chrome plated steel allows the trigger hose to be pulled into the spraying position and returned back to the washing area when released
  • Stylish pin flick mixer that is compact and easy to use
  • Easy to assemble and adjustable wall bracket
  • Flexible hose TPU inner.
  • Main riser pipe in stainless steel, and designed for quick and easy installation.
  • Chrome plated finish for easy cleaning and added durability

Technical Information

  • WELS: 6 Star Rating (4.5L/min)
  • Nominal Flow Rate (LPM): 3.4
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: 1/2" BSP - Female Flexi Tails
  • Outlet: Trigger Spray
  • Headworks: Ceramic Cartridge
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Maximum Working Temperature (°C): 5 Min - 90 Max
  • Construction: Brass
  • Finish: Chrome

Spare Parts

  • 37473 Spare Lever (Captive Nut Style) for Ezy-Wash® Pre-Rinse Trigger Spray Handle

Alternative Products Option

  • TF150HMP Ezy-Wash® CP-BS Hob Mtd Single Lever Mixer Pre-Rinse Unit Type 150 Flex Tail - Pot Filler

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
