Specification Data Sheet

A bottle trap will add the perfect finishing touch to the look of any basin with exposed plumbing.

Technical Information

  • WaterMark: WMTS 040 Lic. 023442
  • Designed for use with wall basins and installations with exposed plumbing

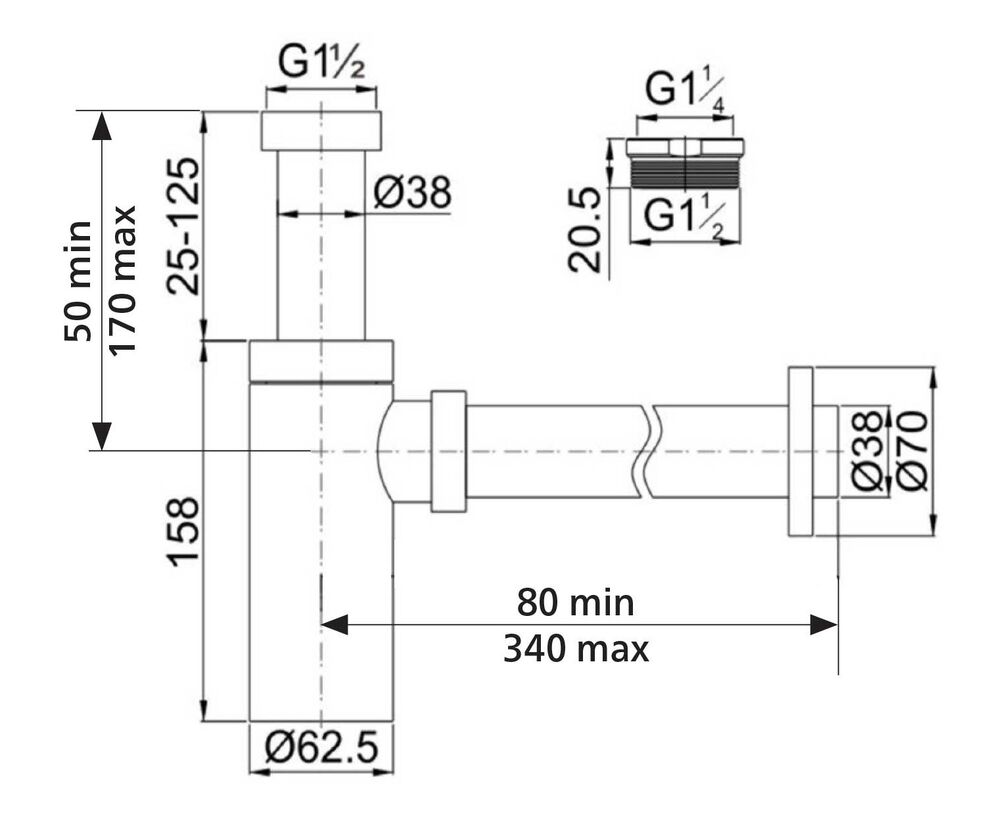

  • Suits 32 or 40 mm wastes. Use 32/40mm adaptor supplied for connection to a 32 or 40 mm plug and waste.
  • Material: Brass alloy
  • Finish: Chrome

Fixing:

  • Must be fitted by a licensed plumber. Warranty does not cover any fault caused by installation or part installation by an unlicensed person.
  • Ensure all o-rings are lubricated with silicone based lubricant.

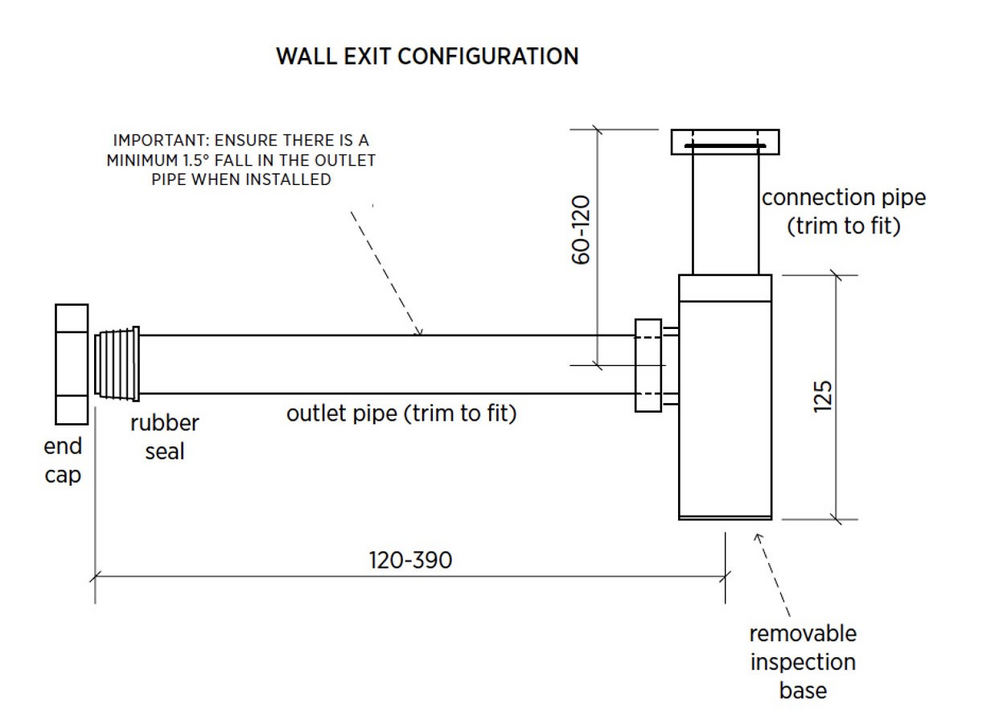

  • Fit connection pipe to plug and washer. Adjust trap height (trim connection pipe as required) to line up with wall outlet pipe and ensure there is a minimum 1.5 degree fall in the outlet pipe when installed.
  • Measure and trim outlet pipe, ensuring there is adequate allowance for pipe and rubber seal to fit into DWV female socket.
  • Fit rubber seal over outlet pipe and fit into 40mm DWV female socket.
  • Fit protective cover over outlet pipe prior to final connection to plumbing.
  • Firmly tighten all joints. Do not over-tighten. Test for leaks.

Cleaning:

  • Clean with soapy water. Do not use corrosive or abrasive cleaners.

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
