Specification Data Sheet

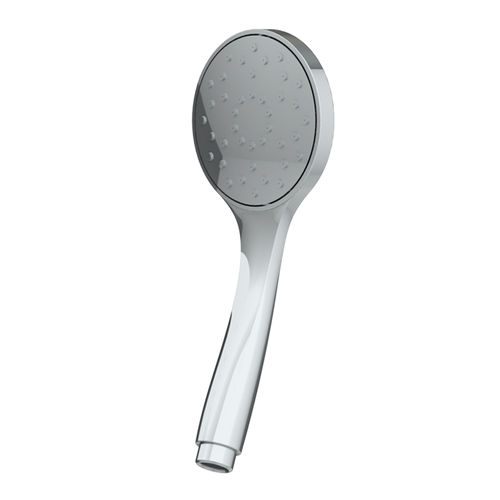

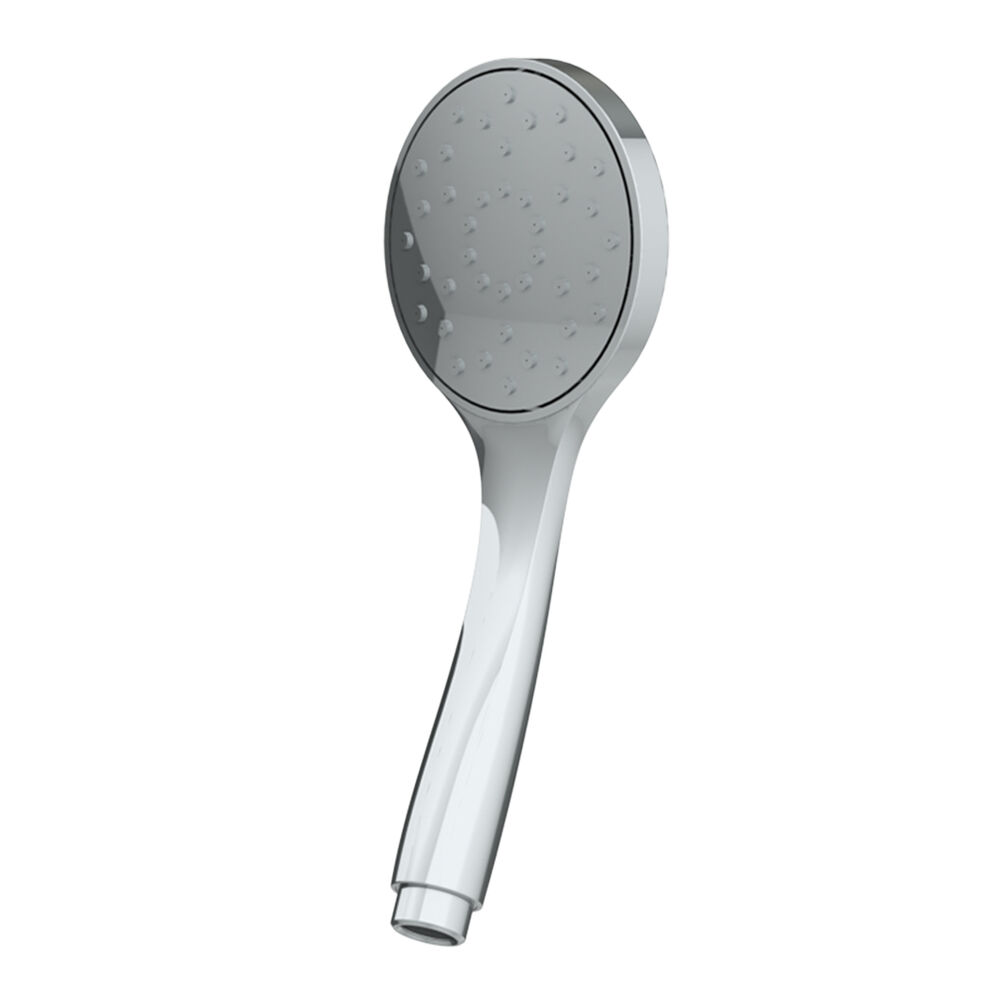

This CP ABS Shower Handpiece is a lightweight and durable shower handpiece designed for reliable performance in commercial, healthcare and aged care environments. The rub-clean spray diffuser allows for easy removal of limescale build-up, helping maintain a consistent spray pattern and reducing maintenance requirements.

Features

  • Durable ABS shower handpiece construction
  • Rub-clean spray diffuser for easy removal of limescale build-up
  • Chrome plated finish
  • Lightweight and easy-to-handle design
  • Provides durability for high-use environments
  • Comfortable and easy to use for both carers and end users

Technical Information

  • WELS: 5 Star Rating (6.0L/min)
  • Nominal Flow Rate (LPM): 5.62
  • WaterMark: AS/NZS Lic. WMK26191
  • Inlet: ½” BSP – Female
  • Outlet: Handheld Shower
  • Working Pressure Range (kPa): 150 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 55 Max
  • Finsih: Chrome

This product is compatible with

  • 111.00.00.90 GalvinAssist® Hand Shower Kit
  • 41999CP GalvinAssist® CP Hand Shower Kit with 900 x 32mm SS Hygienic Grab Rail
  • 41978CP GalvinAssist® CP Hand Shower with Inverted T 700 x 1100mm SS Hygienic Grab Rail (Centre)
  • 41985CP GalvinAssist® CP Hand Shower with Inverted T 700 x 1100mm SS Hygienic Grab Rail (LH)
  • 41992CP GalvinAssist® CP Hand Shower with Inverted T 700 x 1100mm SS Hygienic Grab Rail (RH)
  • CLEVAKIT4CP GalvinAssist® CP Hand Shower Kit with 1000 x 32mm SS Grab Rail, Pull Rod, ClevaCare® Shower & CliniLever® Single Lever Mixer
  • CLEVAKIT3CP GalvinAssist® CP Hand Shower Kit with 1000 x 32mm SS Grab Rail, Pull Rod, ClevaCare® Shower & CliniLever® Taps
  • CLEVA045CP GalvinAssist® CP Hand Shower Kit with 1000 x 32mm SS Hygienic Grab Rail, ClevaCare® Shower & Pull Rod - Low Wall Outlet
  • CLEVAKIT2CP GalvinAssist® CP Hand Shower Kit with 900 x 32mm SS Hygienic Grab Rail, ClevaCare® Shower & CliniLever® Single Lever Mixer
  • CLEVAKIT1CP GalvinAssist® CP Hand Shower Kit with 900 x 32mm SS Hygienic Grab Rail, ClevaCare® Shower & CliniLever® Taps
  • CLEVA035CP GalvinAssist® CP Hand Shower Kit with 900 x 32mm SS Hygienic Grab Rail, ClevaCare® Shower - Low Wall Outlet

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
