The GalvinCare® Electronic Ducted Dual Flush Pan Assembly with Controller offers a complete ligature- and vandal resistant solution. The unique electronic valve assembly provides a precise delivery of water, and is purpose-built for rear (duct) installation in high-risk and secure environments.

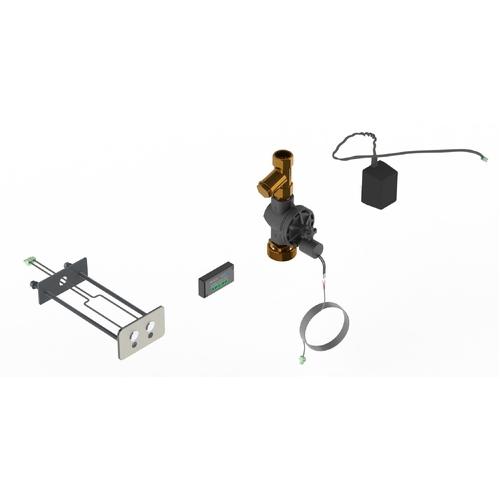

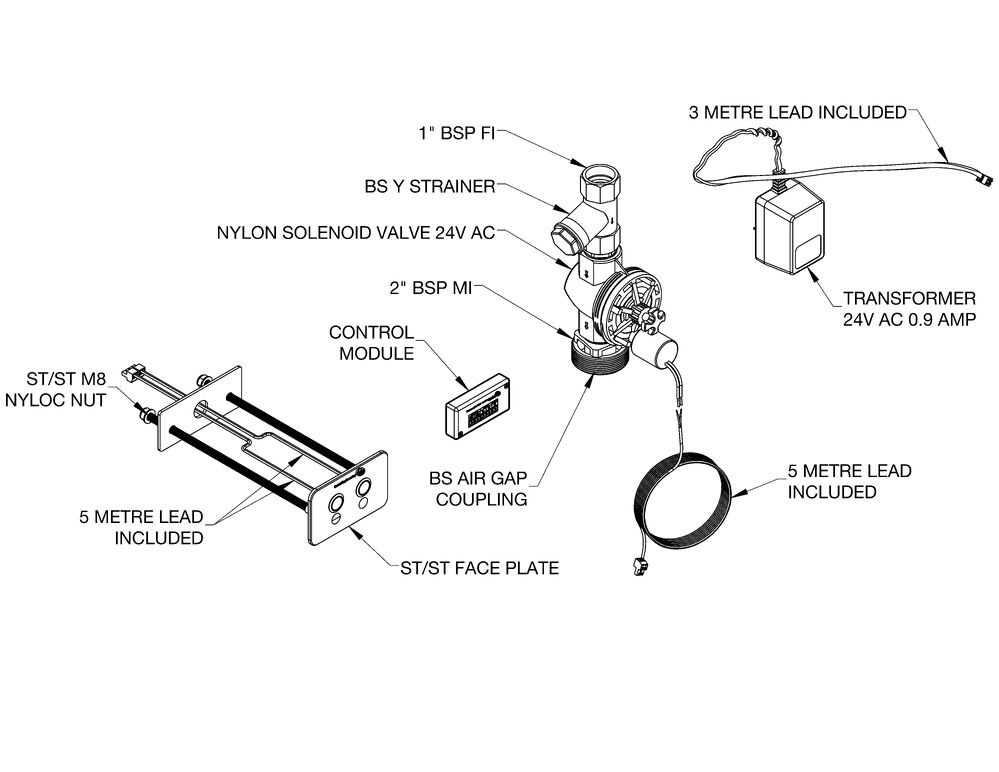

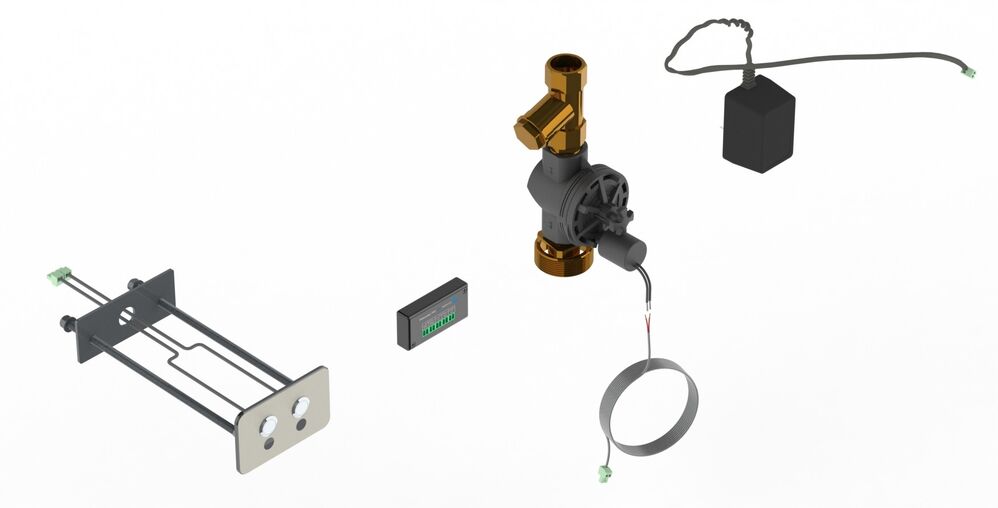

Inclusions
- Faceplate
- Electronic Push Buttons
- PB2 Controller
- Solenoid
- Transformer
Features
- Ligature and vandal resistant
- 4mm thick brushed stainless steel plate
- Designed for rear fixing via service duct with no front penetrations
- Pressing the push button activates the flush. Once activated the water will flow for the 15 second factory preset time or until deactivated by pressing the button again.
- Control box and sensors must be installed within 3 metres of the valve
- Supplied with cabling for push button, solenoid, and transformer
- The standard program can be modified to suit individual needs - a compatible Android device with Bluetooth is required
- Australian made – local support and spare parts available for reduced downtime

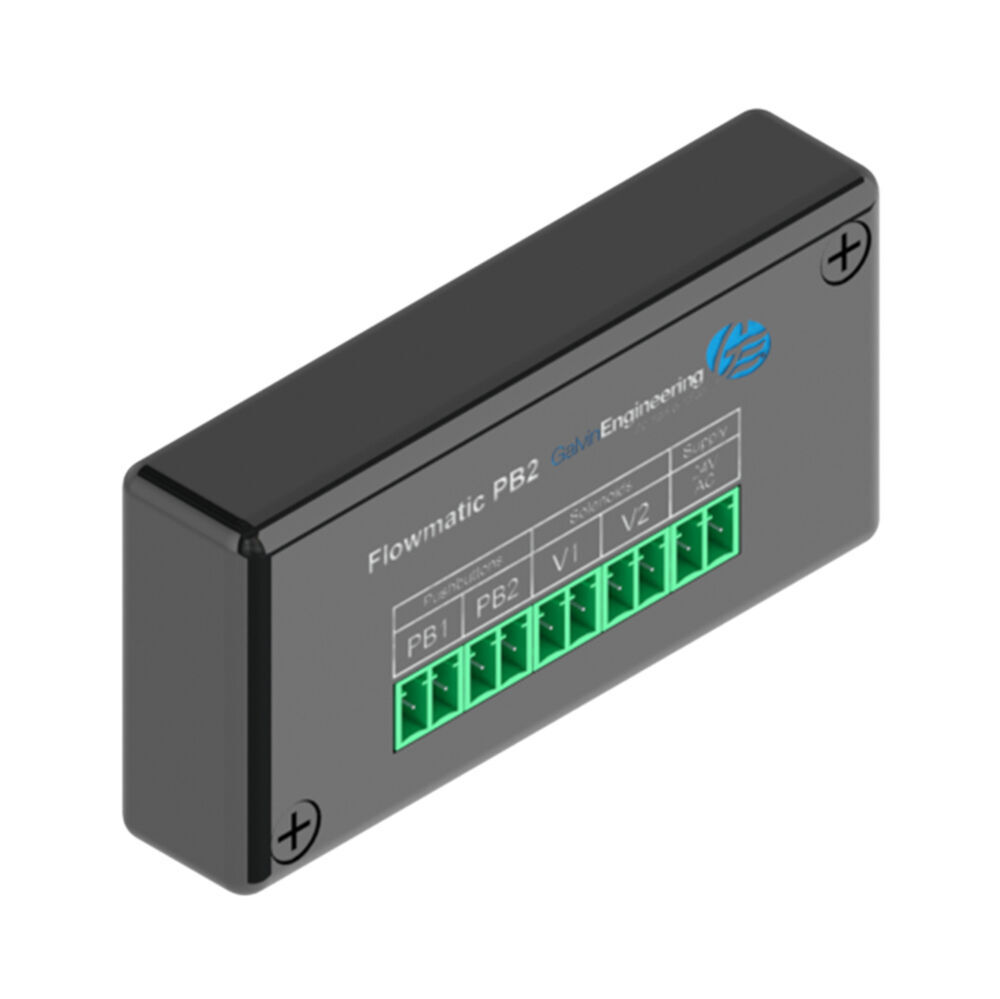

Controller
- 24V AC electronic control system
- Pre-programmed and ready for use
- Supports input from up to 2 buttons and up to 2 solenoids (single solenoid only for flushing units)
- Operating parameters can be adjusted via compatible Android device with Bluetooth

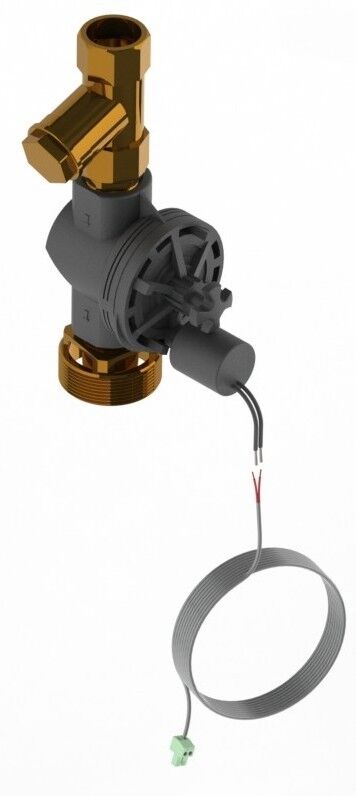

Solenoid Valves
- 24V AC water hammer resistant solenoids
- High-flow, low-pressure loss control valve designed for reliable operation in high-use environments
Face Plate
- 4mm thick stainless steel
- Rear fixed design with concealed fixings for enhanced vandal and ligature resistance
- No front penetrations for improved safety in high-risk environments

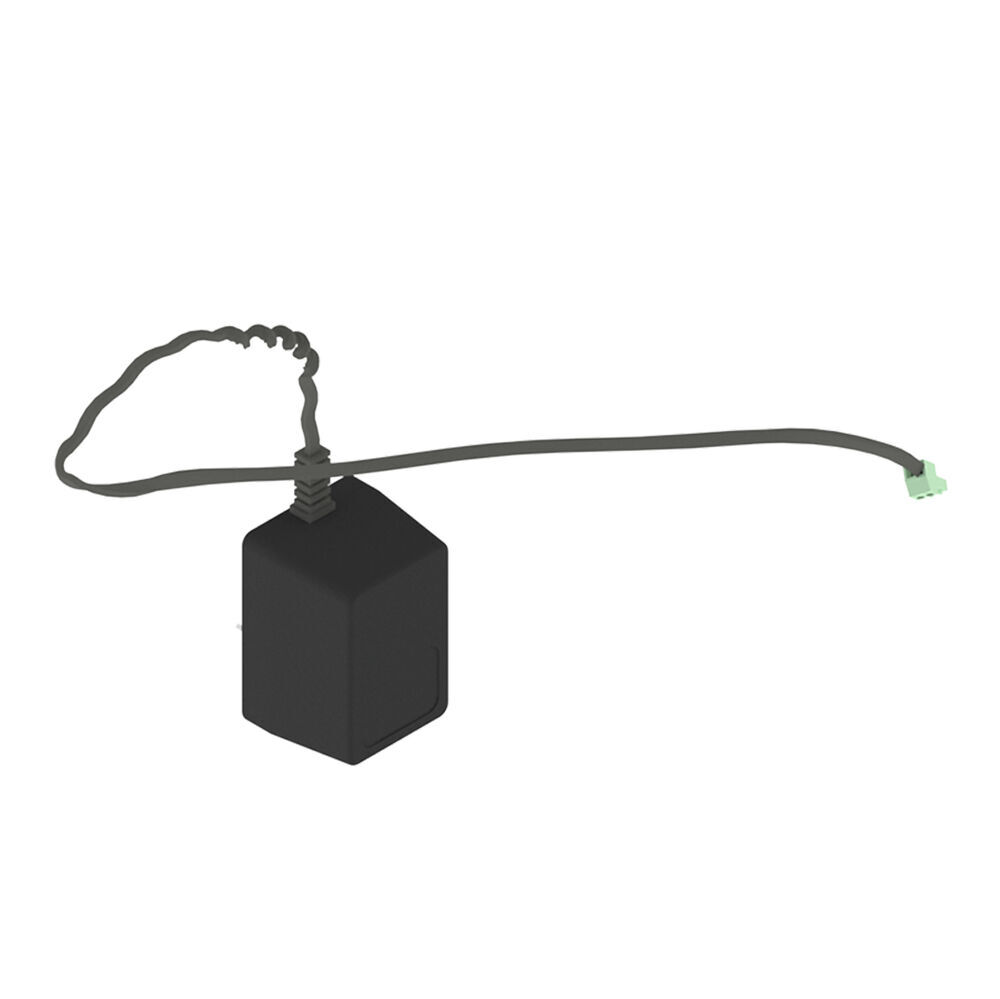

Power Supply
- Transformer input: 230–240V AC, 50Hz
- Output: 24V AC, 0.9A, 22VA
Cabling
- Power cable: 3m
- Solenoid and sensor cables: up to 5m
Other Technical Information
- Inlet: 1" BSP - Female
- Outlet: 2” BSP - Male
- Headwork: Solenoid
- Activation: Push Button (IP68 Rated)
- Working Pressure Range (kPa): 140 Min - 500 Max
- Working Temperature Range (°C): 2 Min - 40 Max
- Finish: Brushed Stainless Steel
Technical Information
- WELS: 4 Star Rating (3.4L/min)
- Nominal Flow Rate (LPM): 3.4
- Full Flush: 4.59
- Half Flush: 3.09
- WaterMark AS/NSZ 1172.2 Lic. WMK26456
- Inlet: 1" BSP - Female
- Outlet: 2" BSP - Male
- Headwork: Solenoid
- Activation: Push Button
- Working Pressure Range (kPa): 140 Min - 500 Max
- Working Temperature Range (°C): 2 Min - 40 Max
- Finish: Stainless Steel
Galvin offers a range of ligature resistant, anti-ligature, vandal resistant, and anti-vandal products designed to reduce the risk of self-harm, suicide, or vandalism, but we cannot offer any guarantee that these events will not take place. Therefore, it is important to understand that installation of these products will not eliminate all risks.
When we use the terms ligature resistant and/or anti-ligature about our products, it means that we have designed and tested these products to reduce the risk of that product being used as a ligature attachment point. They will not protect or prevent injury when the risks were unknown to us at the time of the design of the products. They are not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of self-harm or suicide.
When we use the terms vandal resistant and/or anti-vandal about our products, it means that we have designed and tested these products to reduce the risk of that product being vandalised. They will not protect or prevent damage when the risks were unknown to us at the time of the design of the products.
Galvin recommends that designers, installers, facility managers, and anyone intending to rely on or use any products displayed in our literature or on our website, satisfy themselves about the suitability of the products for their intended use in the building design, and ensure they are being installed, used, and maintained in accordance with our instructions. Facility managers, clinicians, and carers need to ensure that reasonable steps are taken to reduce the accessibility of unnecessary ligatures to at-risk patients, confirm that adequate risk mitigation controls are in place, and make sure that applicable health, safety and patient care standards are being met.
Galvin makes no express or implied warranties regarding the ability of the product to prevent death or injury, to resist all ligature attachment, or to prevent vandalism. No responsibility is assumed by Galvin for any incidental or consequential damages resulting from the use of any products sold by Galvin. To the fullest extent permitted by law, Galvin excludes all liability for damage or injury to any person, damage to any property, and any indirect consequential claims, loss or damage.
