Specification Data Sheet

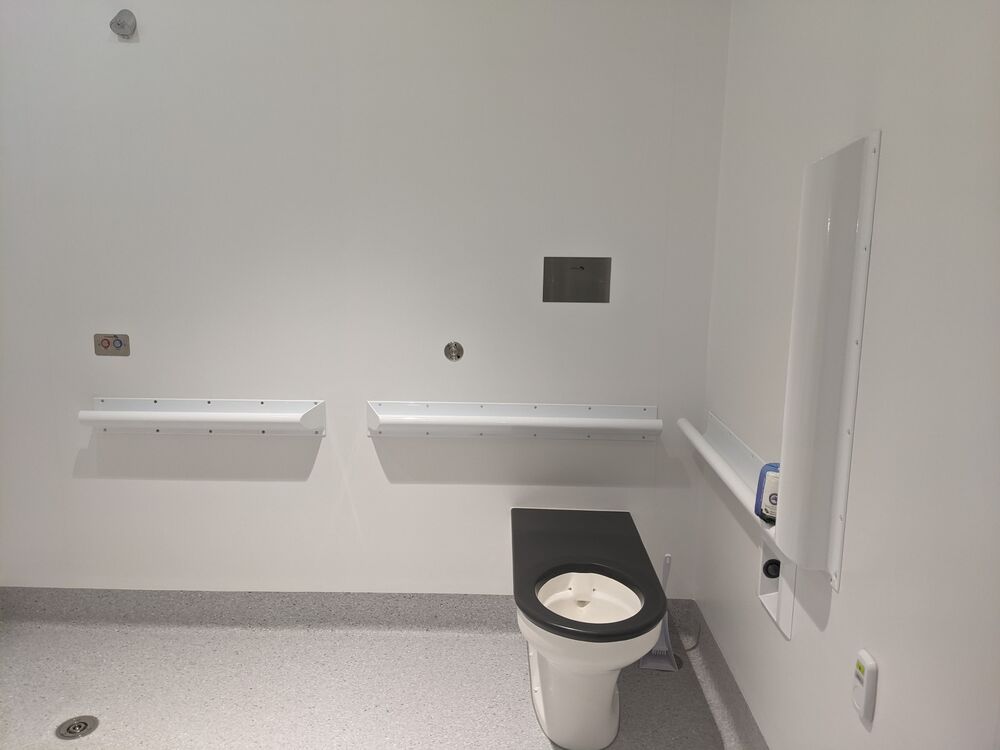

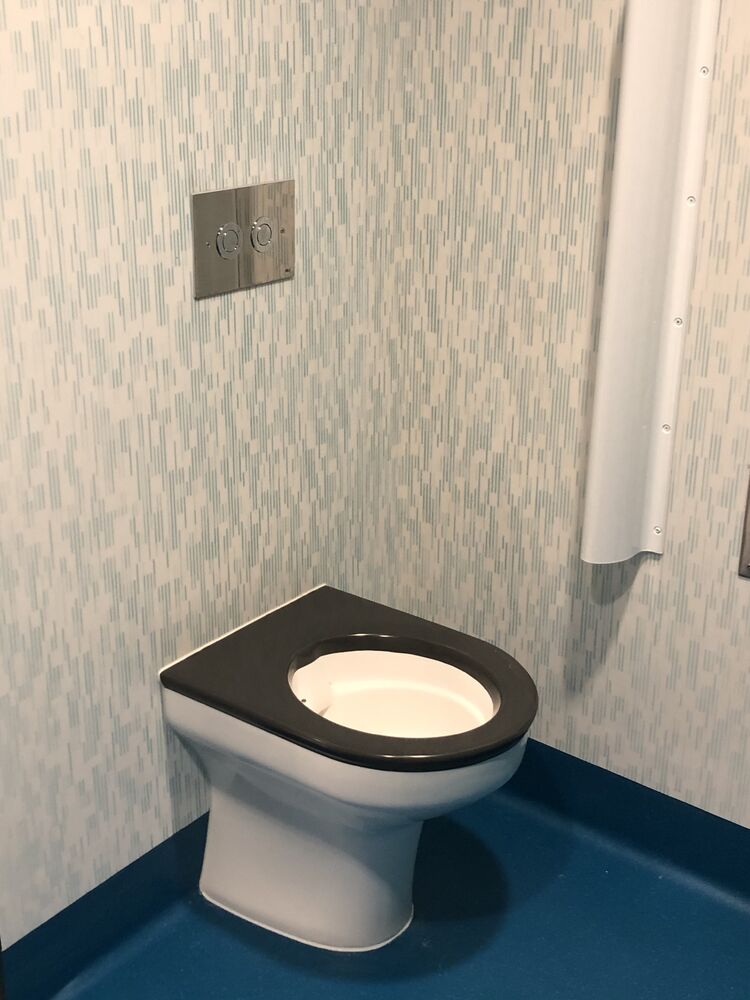

The GalvinCare® anti-ligature grab rails provide safe and reliable fixtures for ambulant and accessible areas in mental health, psychiatric clinics, hospitals and detention facilities to help mitigate the risk of self-harm.

Features

  • Anti-ligature
  • Standard powder coated white finish to help create a more normalised environment
  • One end of the grab rail has an angled cap to prevent ligatures. This is installed at the top of a vertical rail or whichever end of a horizontal rail is most convenient
  • One end remains open for easy drainage and cleaning. This minimises infection control risks associated with other in-filled grab rails
  • Easy to use - to grip the handrail correctly the fingers should curl around the bar with the thumb supporting from the outside
  • Available in other colours such as Shale Grey, Black Glass, Cottage Green, Wineberry, Pommel Blue (must be specified when ordering)
  • Available in lengths up to 6m. Can be mitre joined at 30, 45, or 90 degrees
  • Can be installed to comply to AS 1428.1 Design for Access and Mobility requirements

Technical Information

  • Fixings: Rails have countersunk fixing points to suit 12G Screw head
  • Finishes: Powder Coated

Note: This item is priced and sold In accordance with Schedule 3 of the GST Act 1999 and is GST-Free.

Alternative Product Options

  • 42200 GalvinCare® PC MH Ligature Resistant LH Grab Rail 300mm
  • 42249 GalvinCare® PC MH Ligature Resistant LH Grab Rail 900mm
  • 42271 GalvinCare® PC MH Ligature Resistant 90° LH Grab Rail 450x450mm
  • 42284 GalvinCare® PC MH Ligature Resistant 30° RH Grab Rail 700x950mm
  • 42290 GalvinCare® PC MH Ligature Resistant 90° LH Grab Rail 700x950mm

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Galvin Engineering offers a range of ligature resistant, anti-ligature, vandal resistant, and anti-vandal products designed to reduce the risk of self-harm, suicide, or vandalism, but we cannot offer any guarantee that these events will not take place. Therefore, it is important to understand that installation of these products will not eliminate all risks.

When we use the terms ligature resistant and/or anti-ligature about our products, it means that we have designed and tested these products to reduce the risk of that product being used as a ligature attachment point. They will not protect or prevent injury when the risks were unknown to us at the time of the design of the products. They are not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of self-harm or suicide.

When we use the terms vandal resistant and/or anti-vandal about our products, it means that we have designed and tested these products to reduce the risk of that product being vandalised. They will not protect or prevent damage when the risks were unknown to us at the time of the design of the products.

Galvin Engineering recommends that designers, installers, facility managers, and anyone intending to rely on or use any products displayed in our literature or on our website, satisfy themselves about the suitability of the products for their intended use in the building design, and ensure they are being installed, used, and maintained in accordance with our instructions. Facility managers, clinicians, and carers need to ensure that reasonable steps are taken to reduce the accessibility of unnecessary ligatures to at-risk patients, confirm that adequate risk mitigation controls are in place, and make sure that applicable health, safety and patient care standards are being met.

Galvin Engineering makes no express or implied warranties regarding the ability of the product to prevent death or injury, to resist all ligature attachment, or to prevent vandalism. No responsibility is assumed by Galvin Engineering for any incidental or consequential damages resulting from the use of any products sold by Galvin Engineering. To the fullest extent permitted by law, Galvin Engineering excludes all liability for damage or injury to any person, damage to any property, and any indirect consequential claims, loss or damage.

Can be installed to comply to AS 1428.1 Design for Access and Mobility requirements. Important: strict adherence to AS 1428.1 installation guidelines is required to meet compliance standards.
