Specification Data Sheet

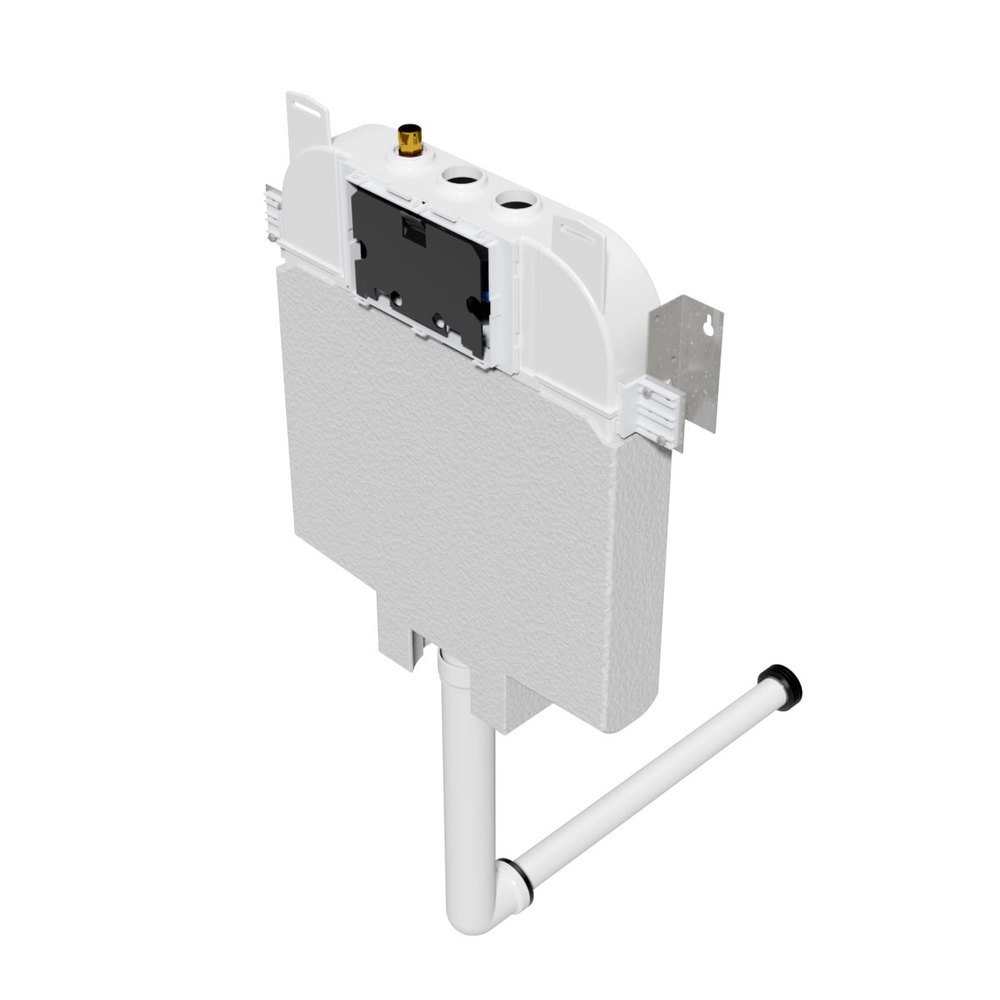

Pneumatically operated WC flush valve and cistern for robust applications where no power is available but some control over the flush activity is required.

Features

  • Slimline cistern
  • Concealed
  • Robust activation push buttons (see activation and control)
  • Simple to install
  • No power required
  • Limited flush management
  • Low cost installation
  • Space saving
  • Low maintenance costs
  • Robust activation buttons
  • Assists in the prevention of misuse

Optional Extras

  • 656507 SS Vandal Resistant Dual Flush Plate Assembly for Pneumatic Inwall Cistern with CP-BS Flush Buttons
  • 656512 SS Vandal Resistant Dual Flush Plate Assembly for Pneumatic Inwall Cistern with CP-BS Raised Buttons
  • 656506 SS Vandal Resistant S/F Plate Assembly for Pneumatic Inwall Cistern with CP-BS Flush Button
  • CWC-155W-AST-AUS Wallgate Anti-Ligature, Anti-Vandal S/Surface Pan S&P with Grey Integ Seat 446x702 - Rear Fixed
  • 656510 SS Vandal Resistant Dual Flush Plate Assembly for Pneumatic Inwall Cisterns
  • 656504 Vandal Resistant Dual Flush Push Button Assembly with Polished Stainless Steel Plate - Pneumatic
  • CIPB14 Secure WC Palm Push Button for Pneumatic Cist 19-2, 0-50mm Wall
  • CIPB15 Secure WC Palm Push Button for Pneumatic Cist 19-2, 25-190mm Wall
  • CIPB11-B Wallgate Secure WC Push Button for Pneumatic Cistern Cist19 PNEU-2; 0-50mm Wall-Single Push
  • CIPB12-B Wallgate Secure WC Push Button for Pneumatic Cistern Cist19 PNEU-2; 25-190mm Wall-Single Push
  • CIPB13 Wallgate Secure WC Raised Push Button for Pneumatic Cistern 19-2, 0-15mm Wall

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
