Specification Data Sheet

The GalvinAssist® Toilet Suite with Double Flap Blue Seat is designed to support safer and more intuitive bathroom use in aged care, healthcare and dementia-friendly environments.

The high-contrast blue seat improves visibility against the white vitreous china pan, helping users with low vision or cognitive impairment identify the toilet more easily. The double flap soft-close seat offers durability and comfort while simplifying cleaning through quick-release functionality.

Featuring a hygienic rimless wall-faced pan, universal cistern and flexible S or P trap installation, the suite combines water efficiency, ease of maintenance and long-term reliability for high-use commercial and healthcare facilities. It is suitable for projects where colour contrast supports inclusive bathroom design.

Features

  • Clean flush rimless pan design for a powerful hygienic flush
  • Easy care pan height for easier transfers (425mm)
  • High-contrast double flap seat to support visibility and recognition

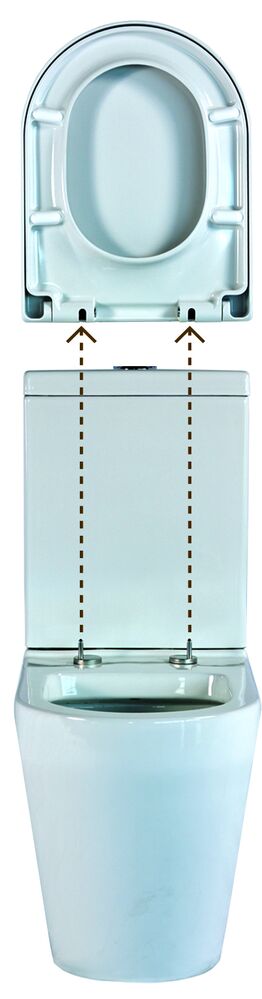

  • Soft closing and quick-release for easy removal and cleaning
  • Suitable for S trap installations
  • Back entry or bottom entry plumbing, right or left
  • Front fixed installation

Technical Information

  • WELS: 4 Star Rating (3.4L/min)
  • Nominal Flow Rate (LPM): 3.4
  • Full Flush (LPM): 4.7
  • Half Flush (LPM): 3.1
  • WaterMark: AS 1172.1 & AS 1172.2 Lic. 023345
  • Dimensions: 370W x 670D x 800H
  • Cistern: Bottom entry as standard, left and right inlet points. Optional back entry plumbing
  • Pan: Close coupled with rimless pan design
  • Traps: Suitable for S trap installations
  • Seat: Double flap, quick release, soft closing
  • Setout: 140 mm recommended
  • Fixing: This is a close coupled toilet suite — the cistern is fixed directly to the pan and does not require wall fixing. Pan may be bedded with cement base or using silicone sealant

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
