Features

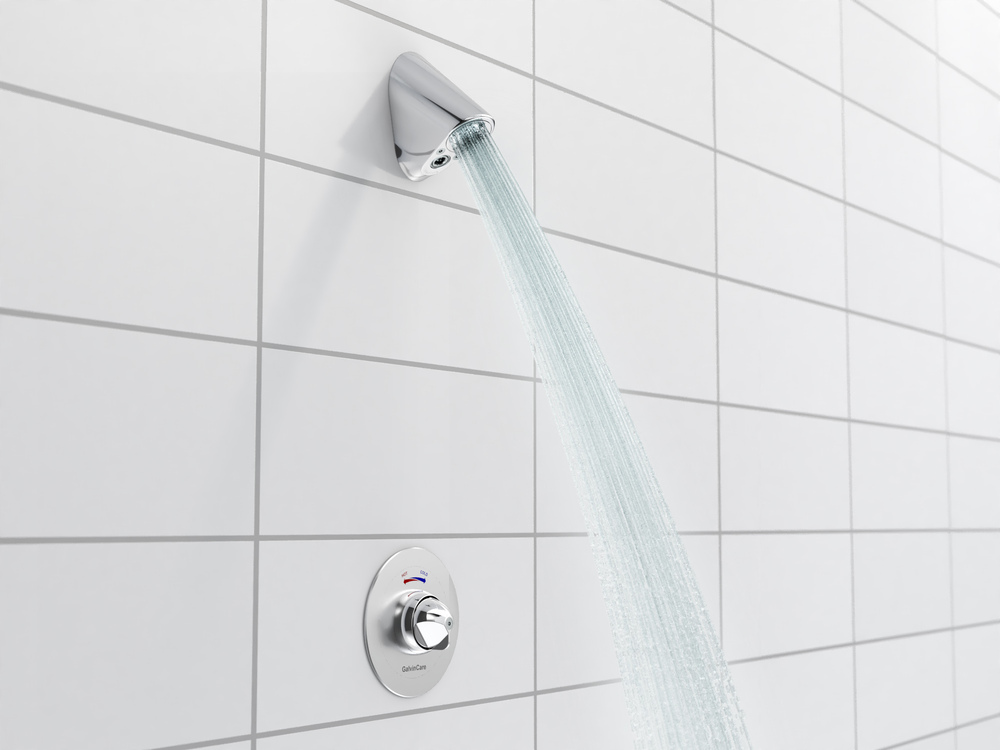

Designed to promote a normalised environment our innovative Australian Made GalvinCare® Mental Health Anti-Ligature Safe-Connect Shower Head offers an auto-divert detachable hose, providing two functions in one single fitting. This allows for the shower to be used for unassisted or assisted showering without the need to install two separate outlets and an in-wall diverter.

Minimising risk due to its anti-ligature and anti-vandal design, the fixed shower head can be safely used by patients independently. The inbuilt automatic diverter enables for a detachable hose to easily be connected, allowing carers to safely provide assisted showering and removing the hose from the room when not in use.

Patented in Australia (2018202412), New Zealand (741366) and Singapore (10201802953U); other international patents pending.

  • AS/NZS 3718 approved
  • Anti-ligature and anti-vandal design
  • Enables assisted and unassisted showering thanks to its detachable handheld shower
  • Saves on labour and maintenance as it replaces multiple fixtures (shower head, diverter, handheld shower, wall connector and adaptor)
  • High quality chrome finish for easy cleaning, added durability and hygiene maintenance
  • Suitable for new builds or retrofit
  • Designed and manufactured in Australia, therefore, spare parts and support are available locally, reducing costs of downtime on maintenance


Technical Information

  • Inlet: 1/2" BSP - Female
  • Outlet: Shower Head
  • Working Pressure Range (kPa): 150 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 70 Max
  • Nominal Flow Rate (LPM): 5.3
  • Construction: Brass
  • Finish: Chrome

Click here for more information about Anti-ligature

Video

Specification Data Sheet

GalvinCare® CP-BS Mental Health Anti-Ligature Safe-Connect Shower Head with Connector

Product Code: 42018

Designed to promote a normalised environment our innovative Australian Made GalvinCare® Mental Health Anti-Ligature Safe-Connect Shower Head offers an auto-divert detachable hose, providing two functions in one single fitting. This allows for the shower to be used for unassisted or assisted showering without the need to install two separate outlets and an in-wall diverter.

Minimising risk due to its anti-ligature and anti-vandal design, the fixed shower head can be safely used by patients independently. The inbuilt automatic diverter enables for a detachable hose to easily be connected, allowing carers to safely provide assisted showering and removing the hose from the room when not in use.

Patented in Australia (2018202412), New Zealand (741366) and Singapore (10201802953U); other international patents pending.

  • AS/NZS 3718 approved
  • Anti-ligature and anti-vandal design
  • Enables assisted and unassisted showering thanks to its detachable handheld shower
  • Saves on labour and maintenance as it replaces multiple fixtures (shower head, diverter, handheld shower, wall connector and adaptor)
  • High quality chrome finish for easy cleaning, added durability and hygiene maintenance
  • Suitable for new builds or retrofit
  • Designed and manufactured in Australia, therefore, spare parts and support are available locally, reducing costs of downtime on maintenance


Technical Information

  • Inlet: 1/2" BSP - Female
  • Outlet: Shower Head
  • Working Pressure Range (kPa): 150 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 70 Max
  • Nominal Flow Rate (LPM): 5.3
  • Construction: Brass
  • Finish: Chrome

Click here for more information about Anti-ligature

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and reduce the use of non-recyclable or non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS3500 and the PCA, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product

Please visit www.galvinengineering.com.au to view the full warranty, our Maintenance & Cleaning information and any other additional information.

Whilst all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remains the property of Galvin Engineering Pty Ltd.
