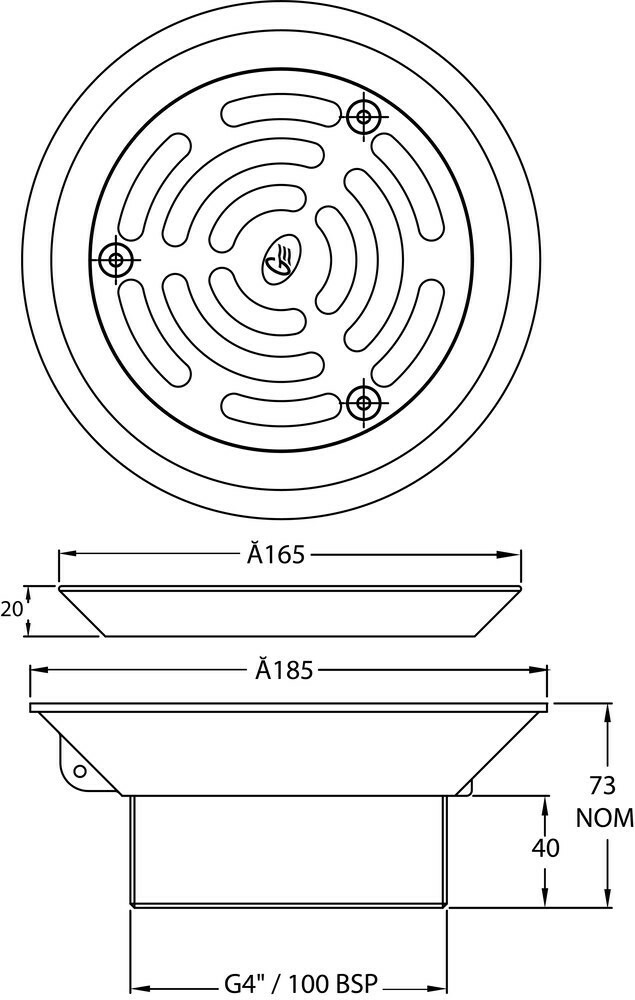

The HeelGrate® range of floor drains has been designed to address concerns about possible accidental injury to pedestrians, caused by high heel shoes penetrating grates. The design of the grates also minimises potential problems where tips of crutches or wheelchair wheels could become lodged in the grate.


  • Complies with AS 3996 to Class B for 100mm opening, Class C for 150mm and above, and EN 1253 Class C
  • Ideal for all commercial kitchens, schools, shopping centres, hospitals and aged care facilities
  • Stainless steel lock down allen key screws
  • Machined surface
  • 5mm gaps between bars to prevent possible accidental injury to pedestrians caused by high-heel shoes penetrating grates
  • Suitable for vinyl floor applications
  • WaterMark: WMTS 040 Lic. WMK02448

Flow Rate Guide (litre/min)

  Pressure Head mm of Water
10mm 20mm 30mm 40mm 50mm
54.5 130.1 178.4 220.3 250

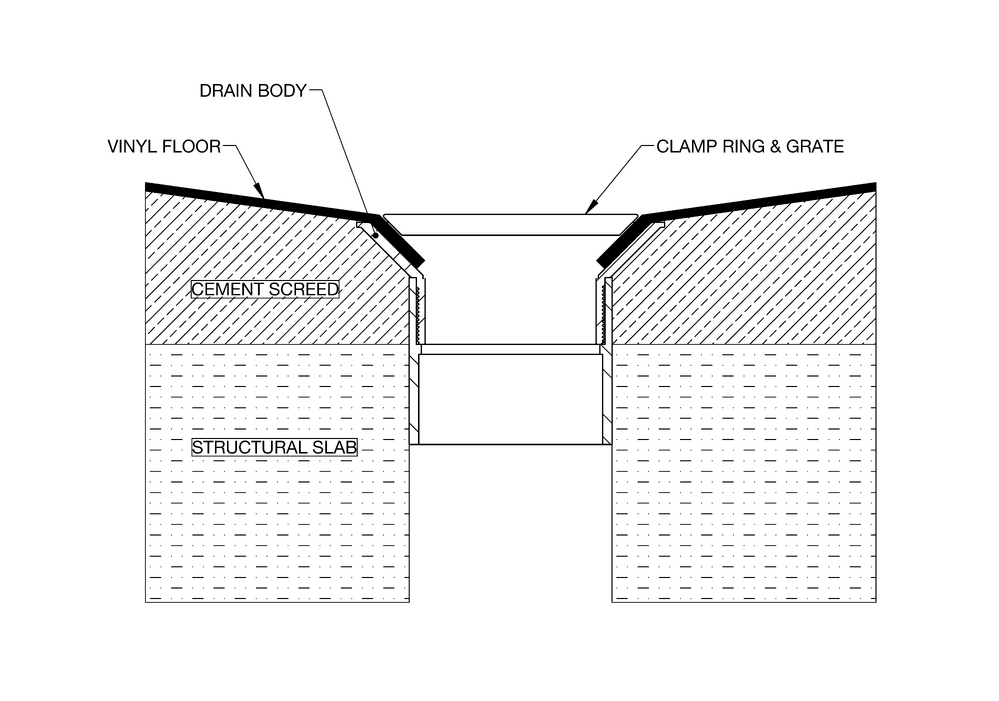

Typical Installation

Optional Extras

  • 303677 Stainless Steel Sediment Bucket 100 Nom
  • 303636 Stainless Steel Strainer Basket 100 Nom
  • 302133 uPVC Floor Drain Coupling 100BSP FI x100PVC
